PCBA SMT Assembly Factory — 4 Complete SMT Production Lines
Product Overview

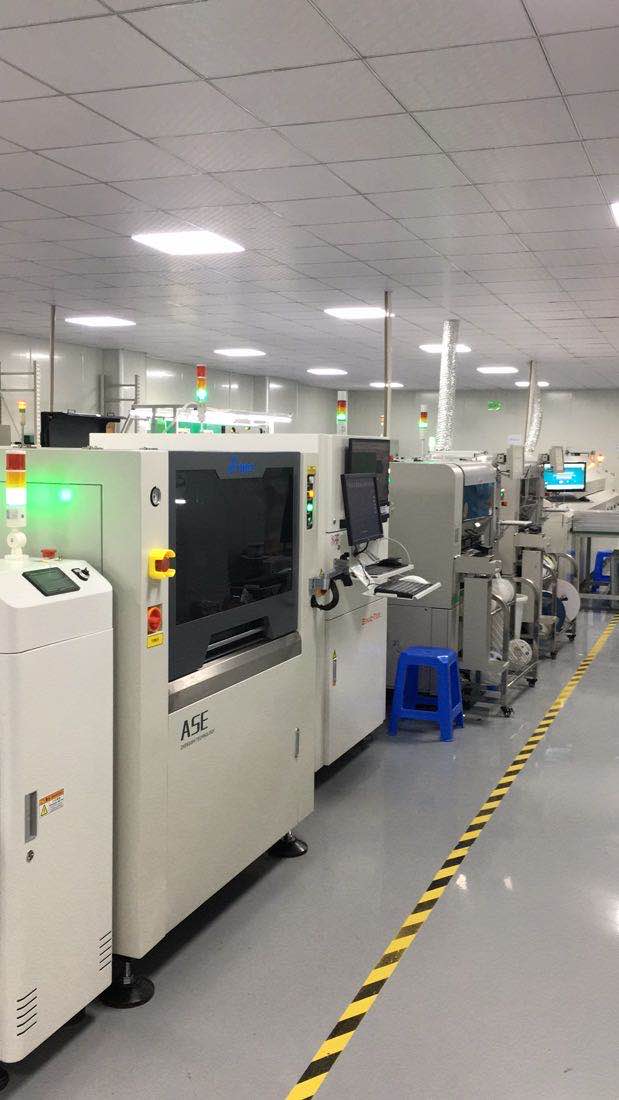

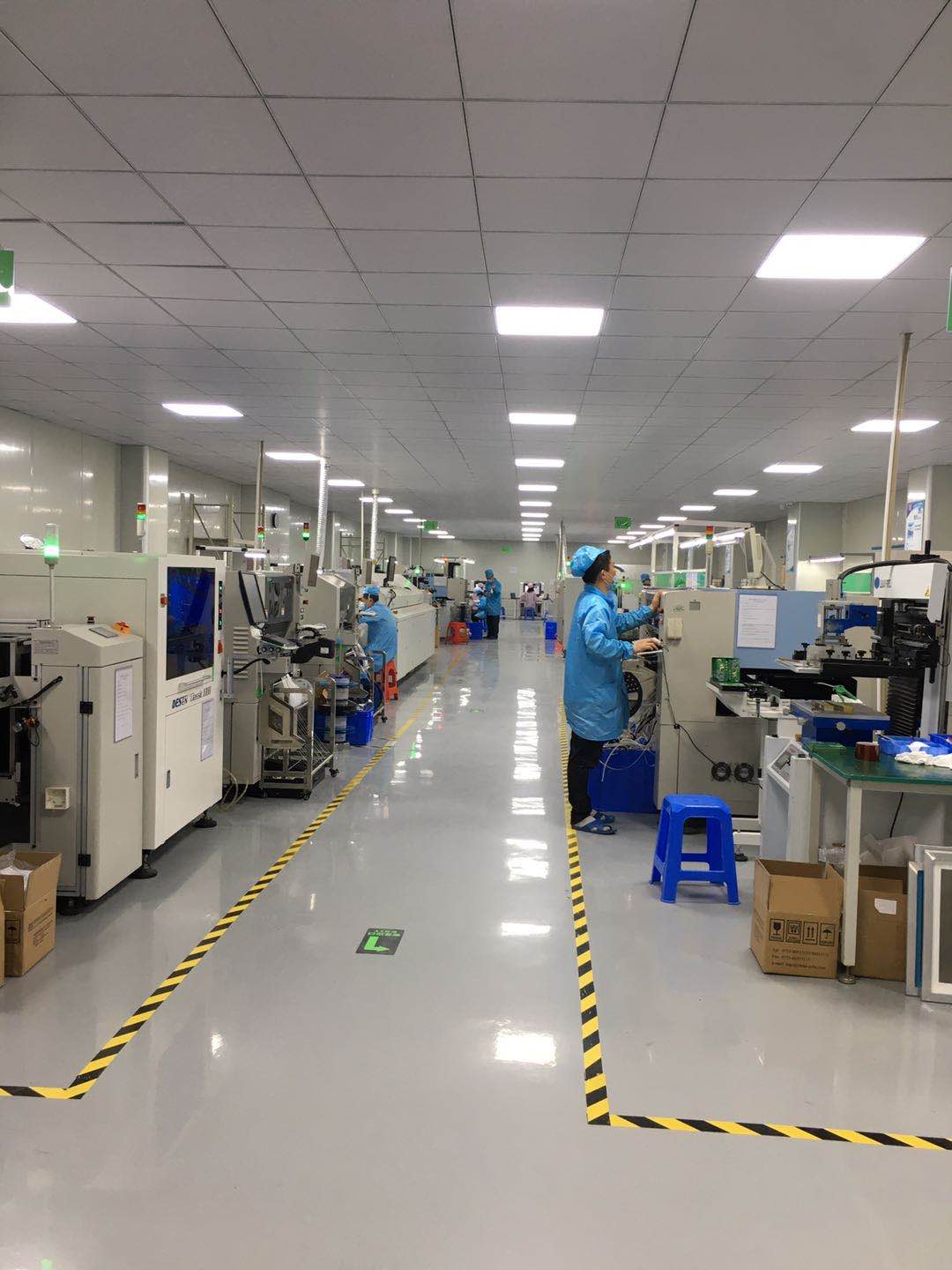

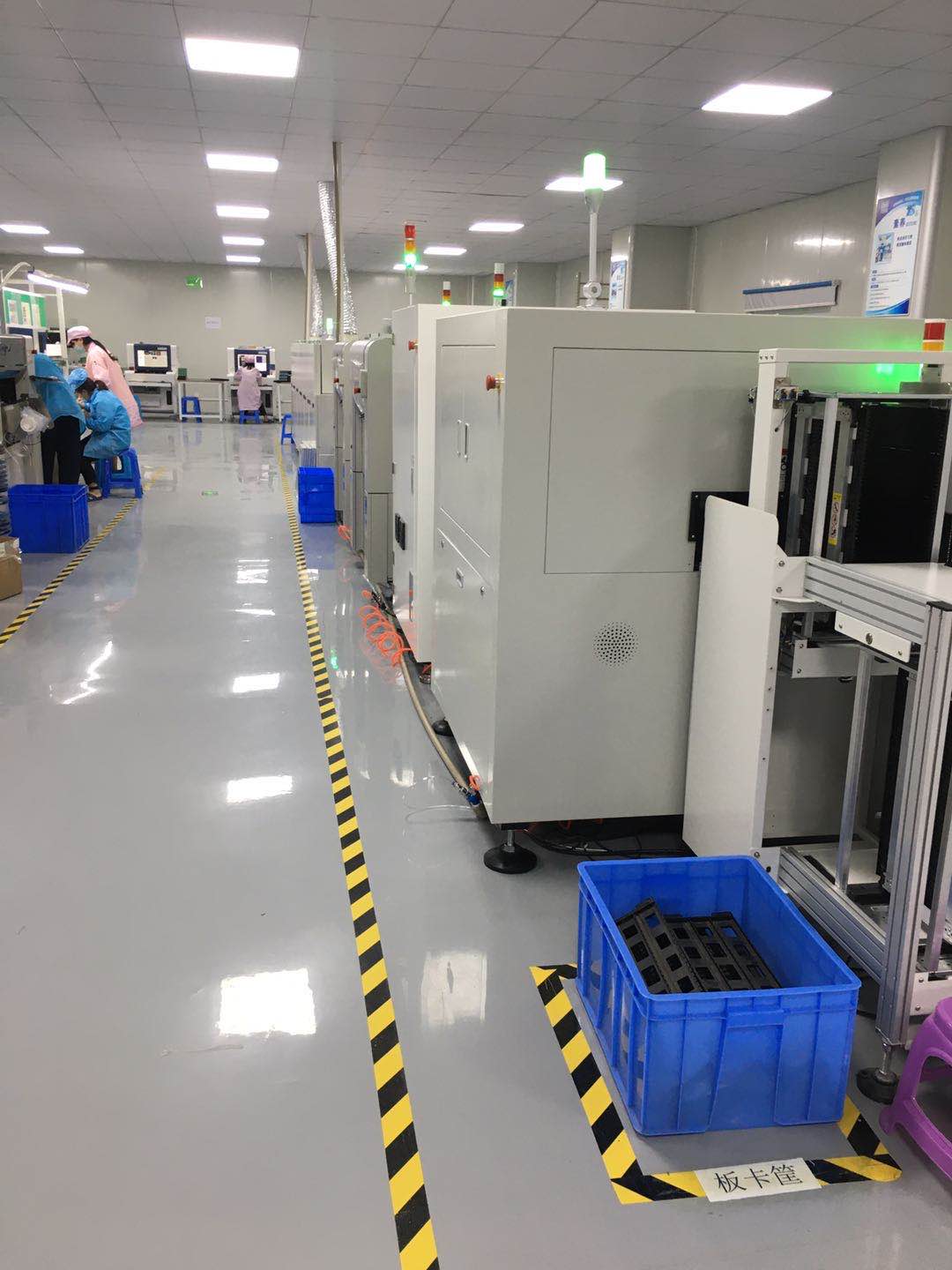

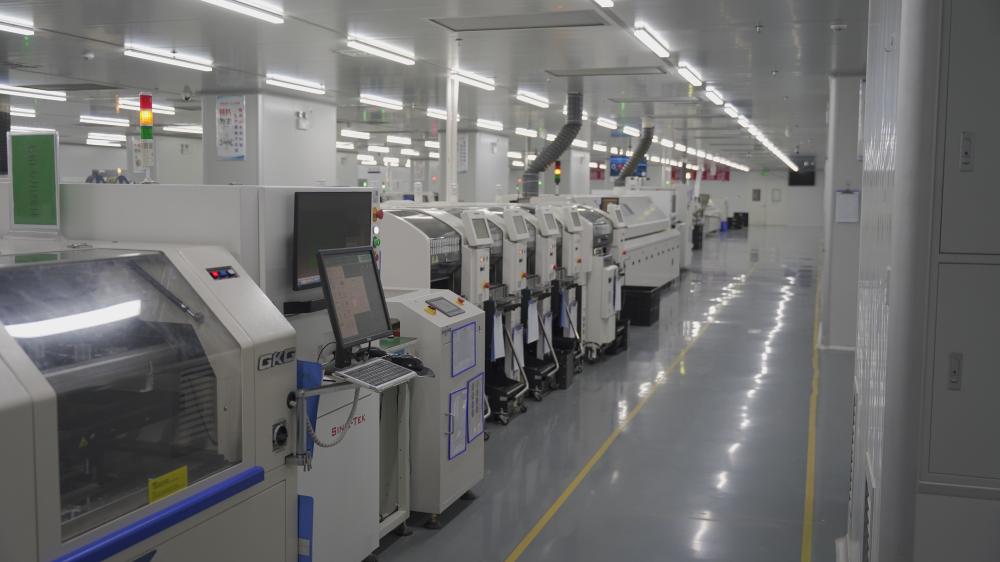

Our 4 SMT Production Lines
4 Fully Equipped SMT Lines: Our factory runs 4 complete SMT production lines in parallel, providing strong assembly capacity and flexible scheduling. Multiple lines can handle different orders simultaneously, greatly shortening lead time and meeting the delivery requirements of both sample orders and mass production.

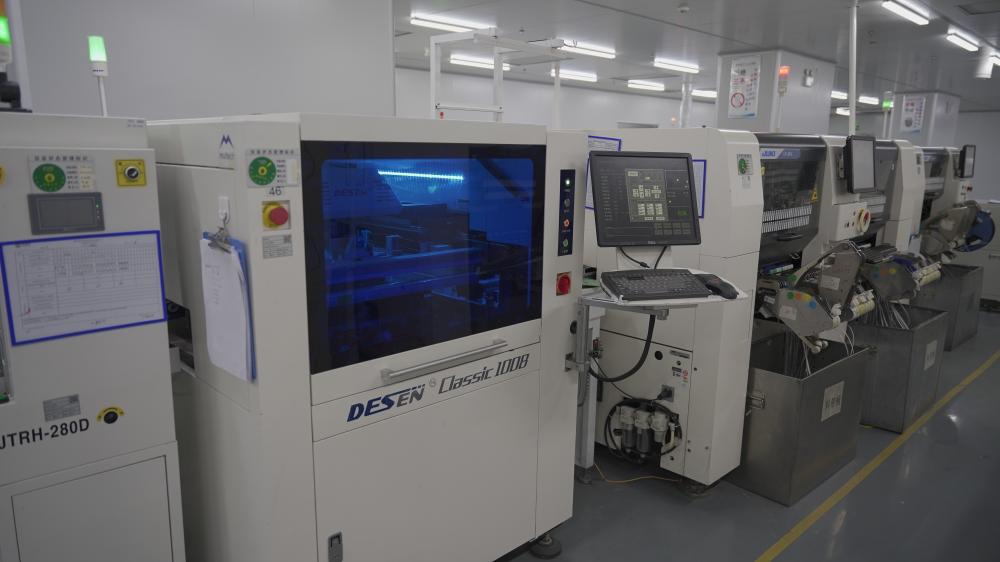

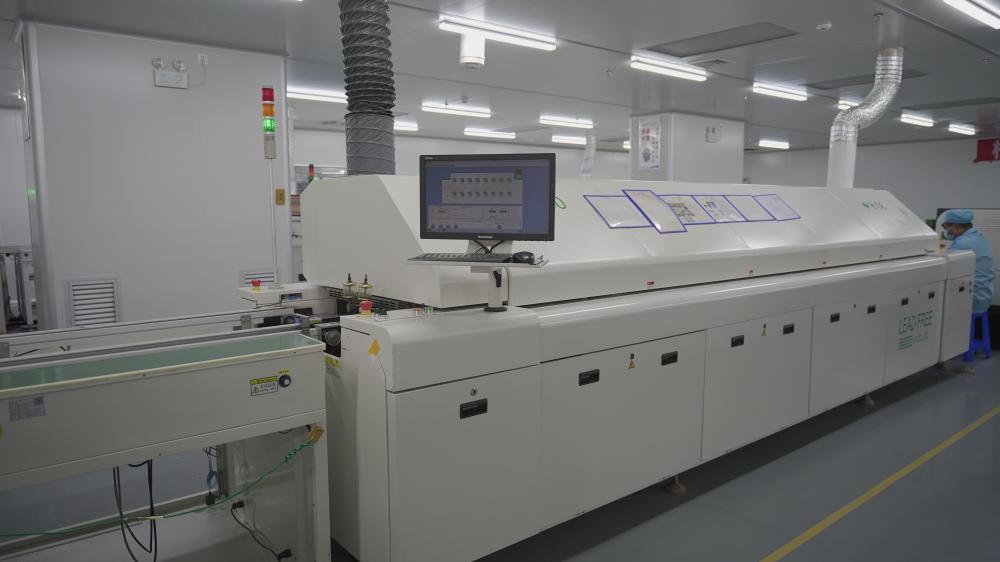

Full Process on Each Line: Every SMT line covers the complete surface-mount process — solder paste printing, high-speed placement, reflow soldering, AOI inspection and output — ensuring a smooth and stable assembly flow from bare board to finished PCBA.
High-Speed & High-Precision Placement: Equipped with high-speed mounters and precise placement control, the lines support fine-pitch and micro-component mounting with high placement accuracy, meeting the dense and precise requirements of high-density PCBs.

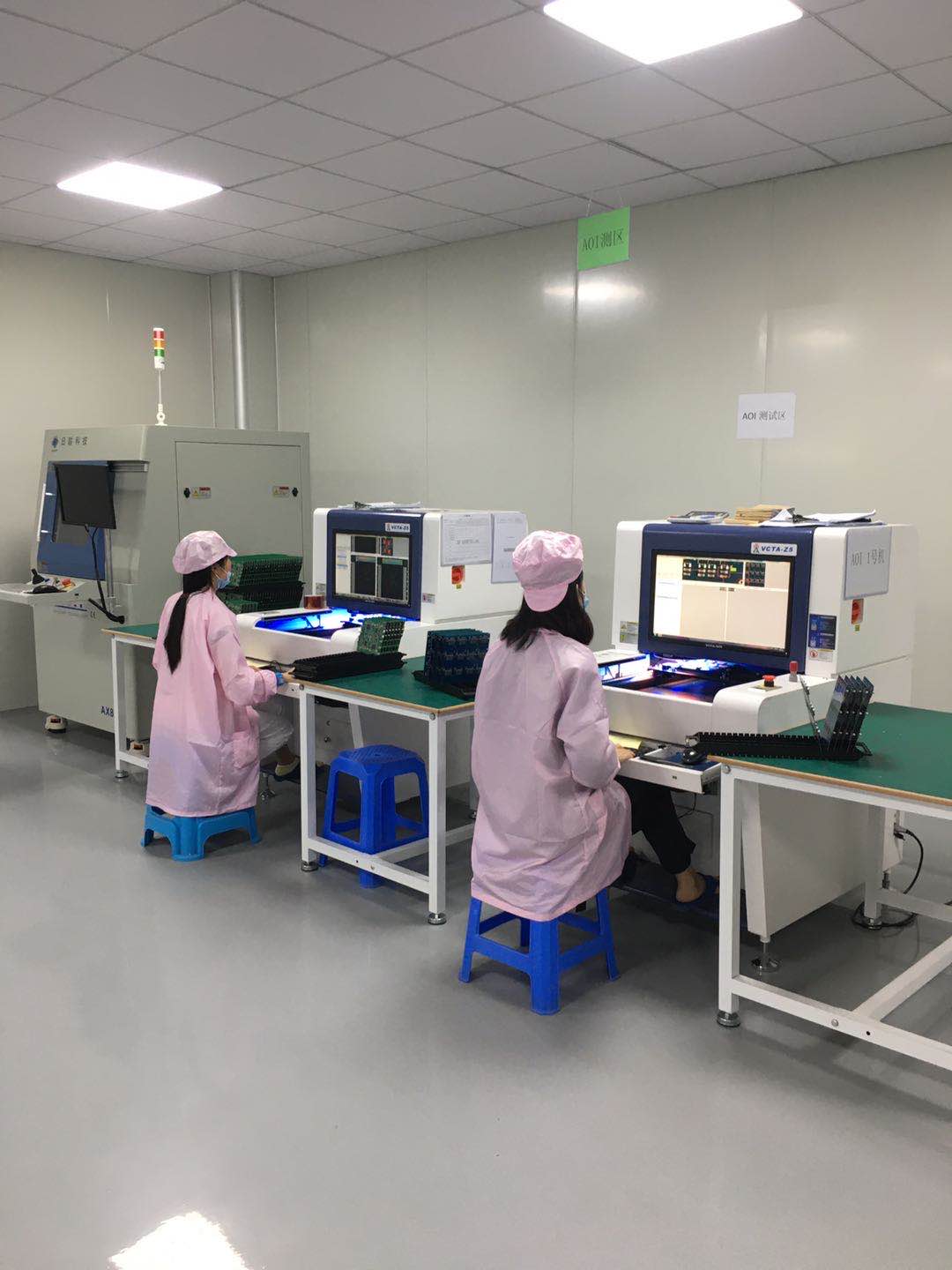

Strict Soldering & Inspection Control: Each line is paired with reflow soldering and AOI (Automatic Optical Inspection) to ensure reliable soldering quality and automatic defect detection, effectively controlling soldering defects and improving the finished product yield.
Core Advantages
Strong Capacity with 4 SMT Lines: Four parallel SMT lines provide ample assembly capacity and flexible production scheduling, supporting large-volume orders while keeping fast delivery.
High Precision for Fine-Pitch Components: High-speed mounters and precise placement control ensure accurate mounting of fine-pitch and micro components, suitable for high-density and high-precision PCBA products.
High Efficiency & Fast Delivery: Continuous automated SMT lines enable fast and stable assembly, greatly improving production efficiency and shortening lead time.
Rigorous Quality Control: Solder paste inspection, reflow soldering control and AOI automatic inspection at every stage ensure reliable soldering quality and consistent output for every batch.
Flexible for Prototype & Mass Production: The 4 SMT lines support everything from single-board prototypes and small-batch orders to large-scale mass production, providing flexible and fast service for various customer requirements.
Intelligent Data Recording & Traceability: Production parameters, placement data and inspection results are automatically recorded across all 4 SMT lines, realizing full-process traceability and continuously improving quality and delivery stability.
Production & Quality Capability
Production Mode: SMT surface mount assembly for PCBAs
Number of SMT Lines: 4 complete SMT production lines
Covered Processes: Solder paste printing, high-speed placement, reflow soldering, AOI inspection and output
Inspection Equipment: AOI (Automatic Optical Inspection) paired with each SMT line
Production Flexibility: Prototype, small-batch and mass production
Quality Standard: Full-process quality control with complete traceability
Data Function: Automatic parameter recording, inspection result management and full quality traceability
