10L HDI PCB with Gold Fingers
Product name: 10L HDI PCB with Gold Fingers
Finished board thickness: 1.57mm thickness
Base material: FR4 TG170
Inner and outer layer copper thickness: 1OZ
Surface treatment: ENIG
Surface finished thickness: ENIG（2U”）
Glod finger plating thickness:30U"
Average Plated Copper Thickness in Holes: 20 μm
Solder mask color: matte black
100% AOI Test
ISO.9001/CQC/ISO.TS16949/ROHS
Application：Consumer/home/network
- Multech
- China
- 15-20days
- 88000sqm/month
Product Description:
The 10L HDI PCB with Gold Fingers is a high-performance printed circuit board, ideal for consumer, home and network electronic devices. Adopting advanced HDI technology, this 10-layer PCB offers excellent interconnect density, signal integrity and structural reliability, suitable for compact, high-functionality products.
Made of FR4 TG170 base material with 170℃ glass transition temperature, it resists high temperatures of lead-free soldering and avoids warpage or delamination. With 1.57mm finished thickness, it balances compactness and mechanical strength. It has 1OZ inner and outer copper thickness for efficient current conduction and heat dissipation, ENIG surface treatment (2U”), 30U” gold finger plating, 20um average plated copper in holes, and matte black solder mask. 100% AOI test and ISO9001/CQC/ISO TS16949/ROHS certifications ensure its high quality and reliability.
Product Specifications: 10L HDI PCB with Gold Fingers
Product Name | 10L HDI PCB with Gold Fingers |
Finished Board Thickness | 1.57mm thickness |
Base Material | FR4 TG170 |
Inner and Outer Layer Copper Thickness | 1OZ |
Surface Treatment | ENIG |
Surface Finished Thickness | ENIG（2U”） |
Gold Finger Plating Thickness | 30U" |
Average Plated Copper Thickness in Holes | 20 um |
Solder Mask Color | matte black |
Test | 100% AOI Test |
Certifications | ISO.9001/CQC/ISO.TS16949/ROHS |
Application | Consumer/home/network |
Product Advantages:
Outstanding high-temperature resistance (High Tg), reliable ENIG 2U” finish, 100% AOI quality control, multi-certified, suitable for high-demand scenarios.
Company Profile:
Founded in 1997, Multech PCB is a leading manufacturer of high-end printed circuit boards in China with nearly 30 years of industry experience. Founded by senior PCB experts, the company's headquartered locates in Qianhai, Shenzhen, and its production base is located in Huizhou. It covers a workshop area of over 20,000 square meters and is equipped with multiple modern automated production lines, with an annual output exceeding 2 million square meters, capable of efficiently handling prototype, medium and high volume orders.
Boasting a professional R&D team of more than 60 members, the company focuses on technological innovation, specializing in high-density multilayer boards, HDI, backplane PCBs, high-frequency boards, metal core PCBs, flexible and rigid-flex PCBs and other special PCBs. 80% of its products are exported to Europe, the United States, Japan and the Asia-Pacific region, widely used in high-tech industries such as telecommunications, industrial control, medical treatment, automotive and aerospace.
The company has passed international authoritative certifications including ISO9001, ISO14001, UL, RoHS and IATF16949, with fully compliant production processes and 100% full inspection before shipment to ensure stable and reliable quality. It has long provided one-stop PCB+PCBA solutions for global well-known enterprises, winning the trust of customers at home and abroad with high quality, cost-effectiveness and prompt delivery.
ISO 13485
ISO 9001
IATF 16949
ISO 14001

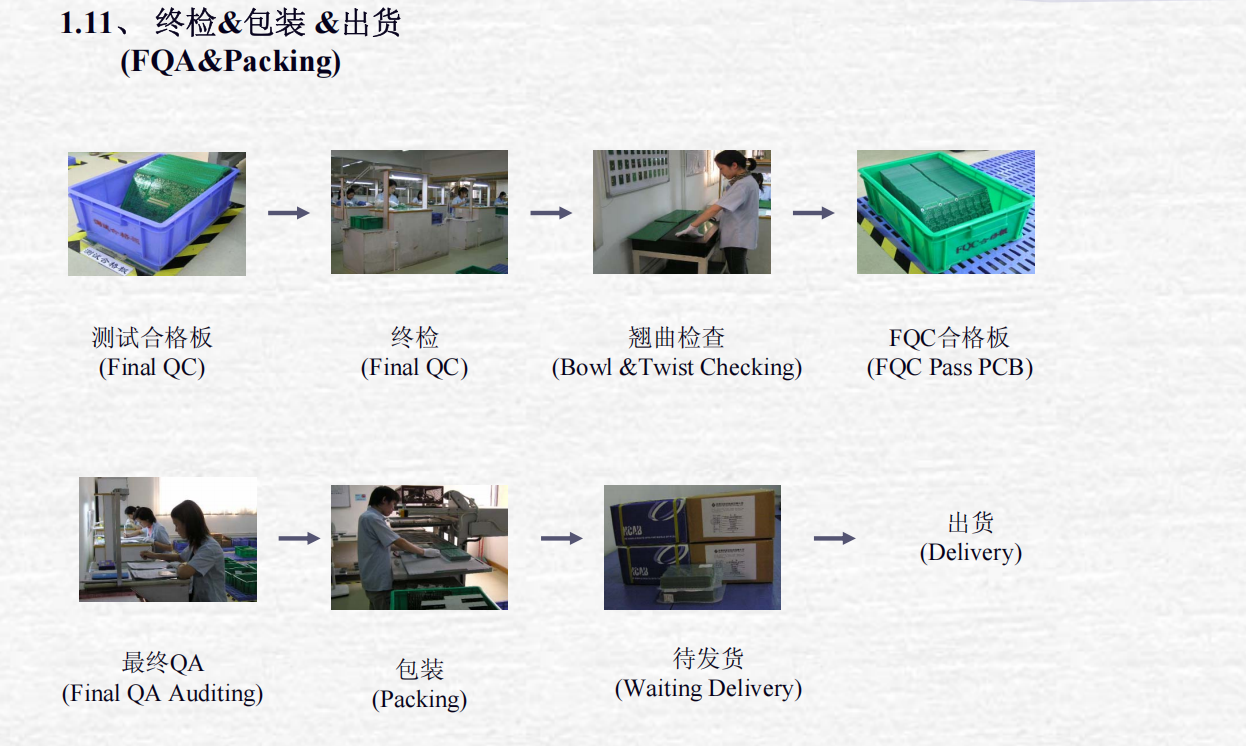

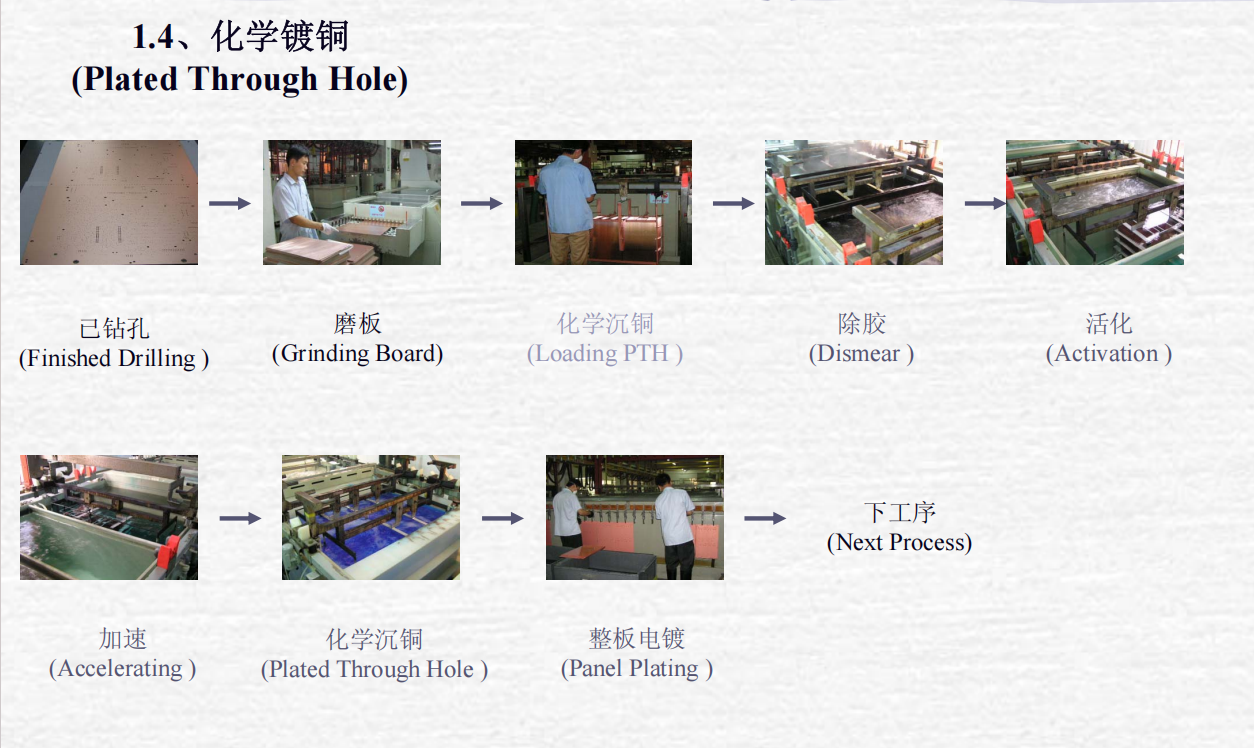

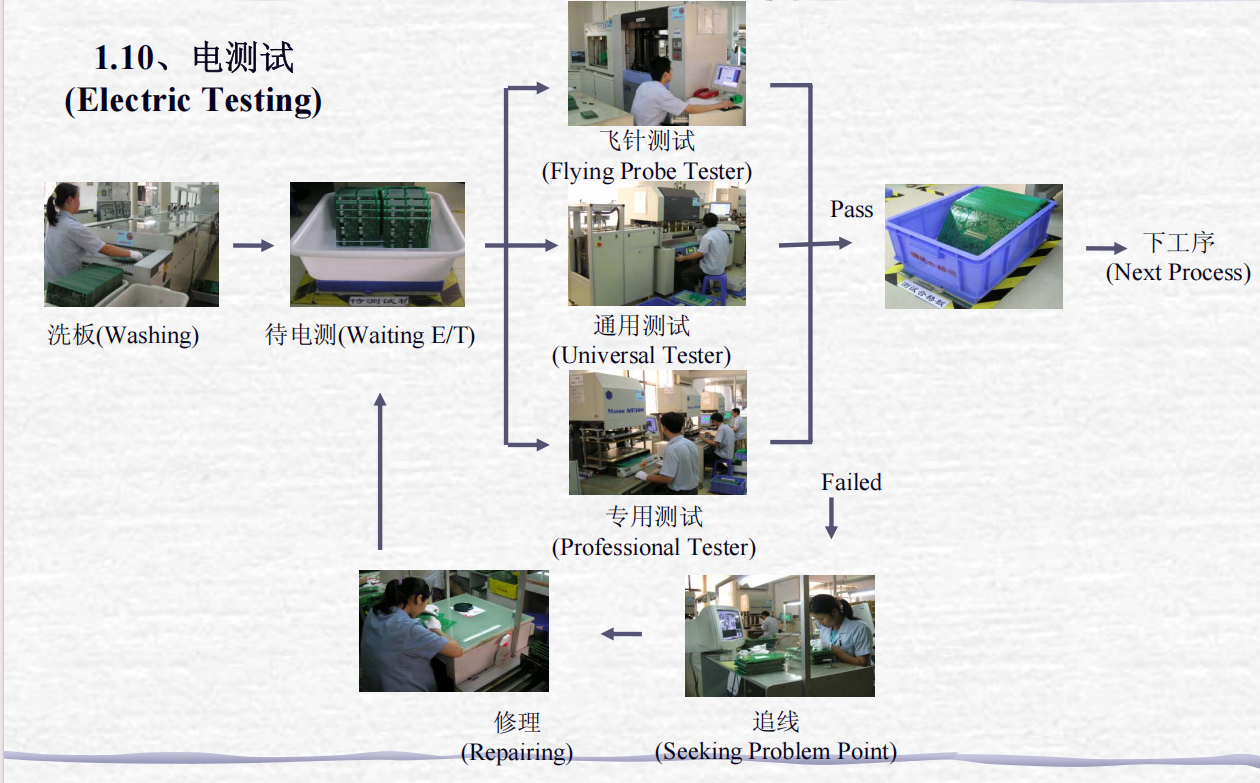

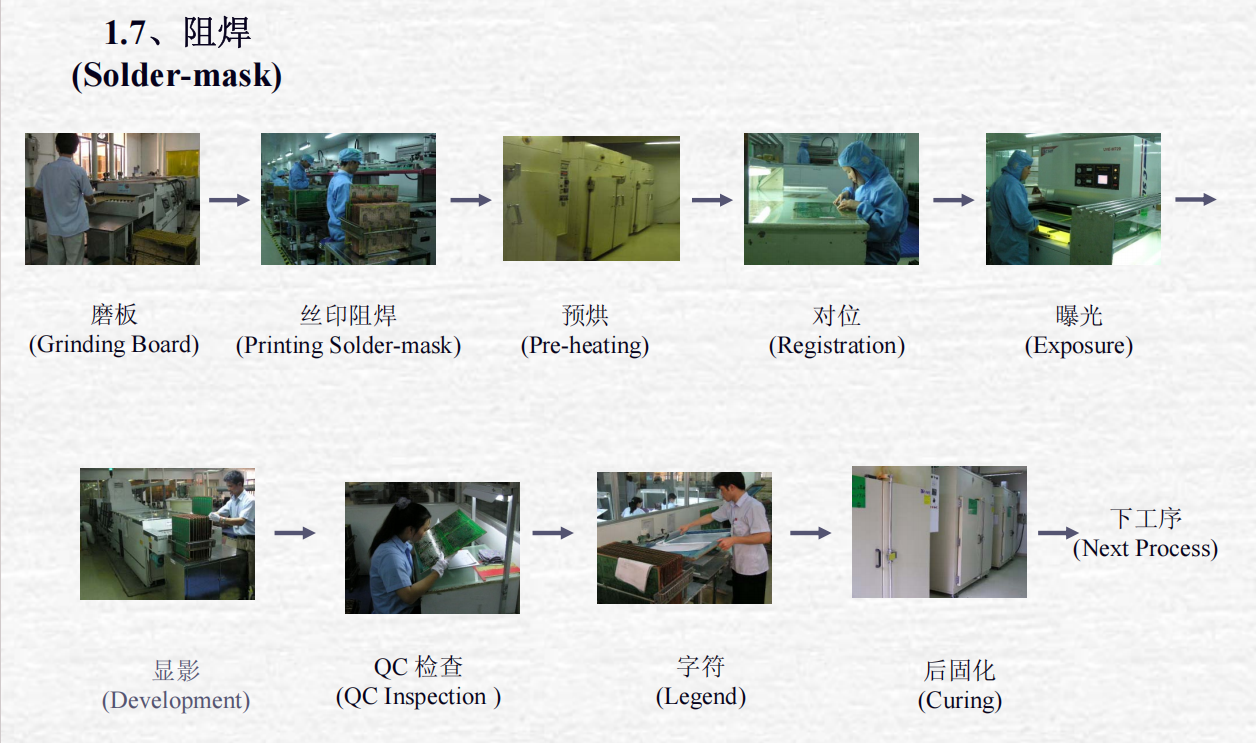

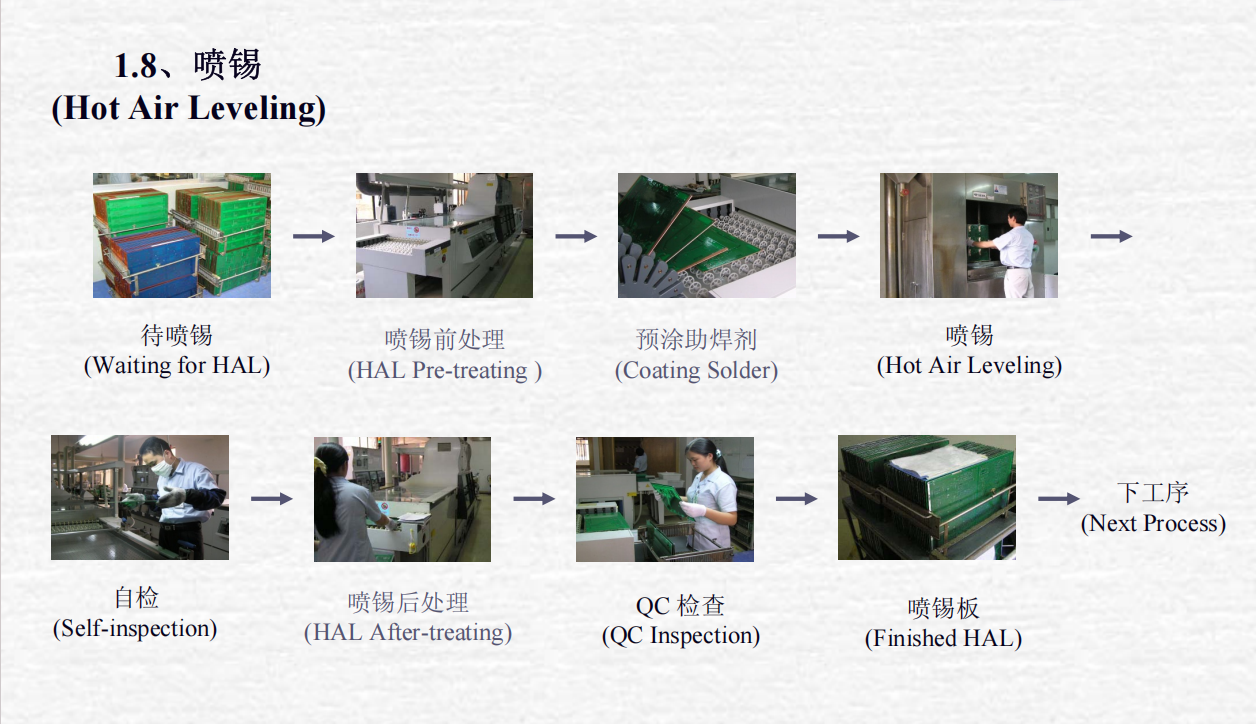

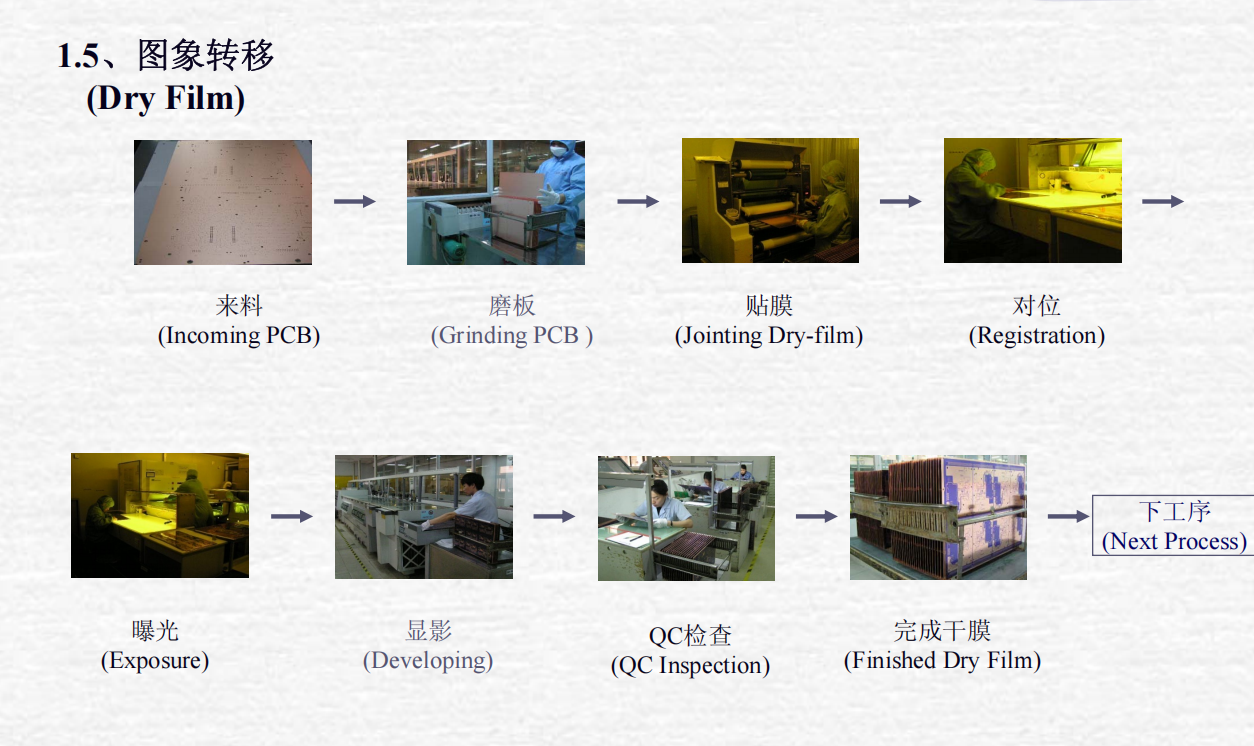

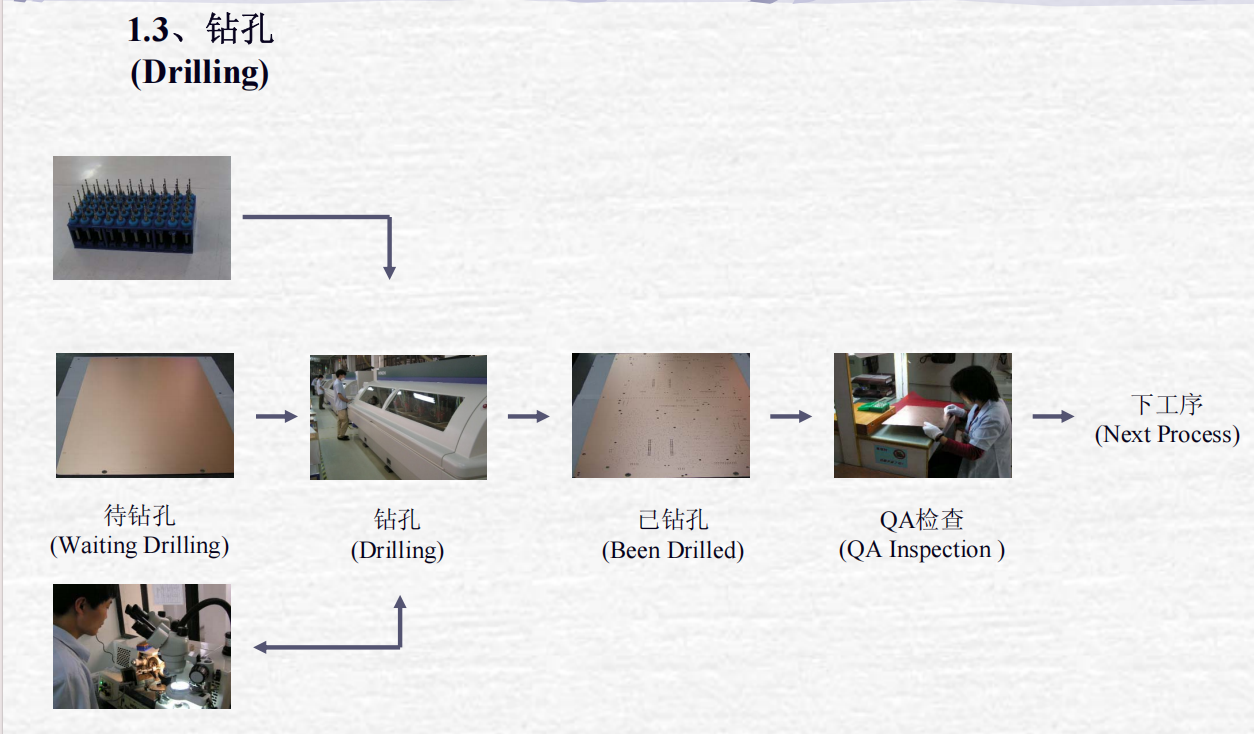

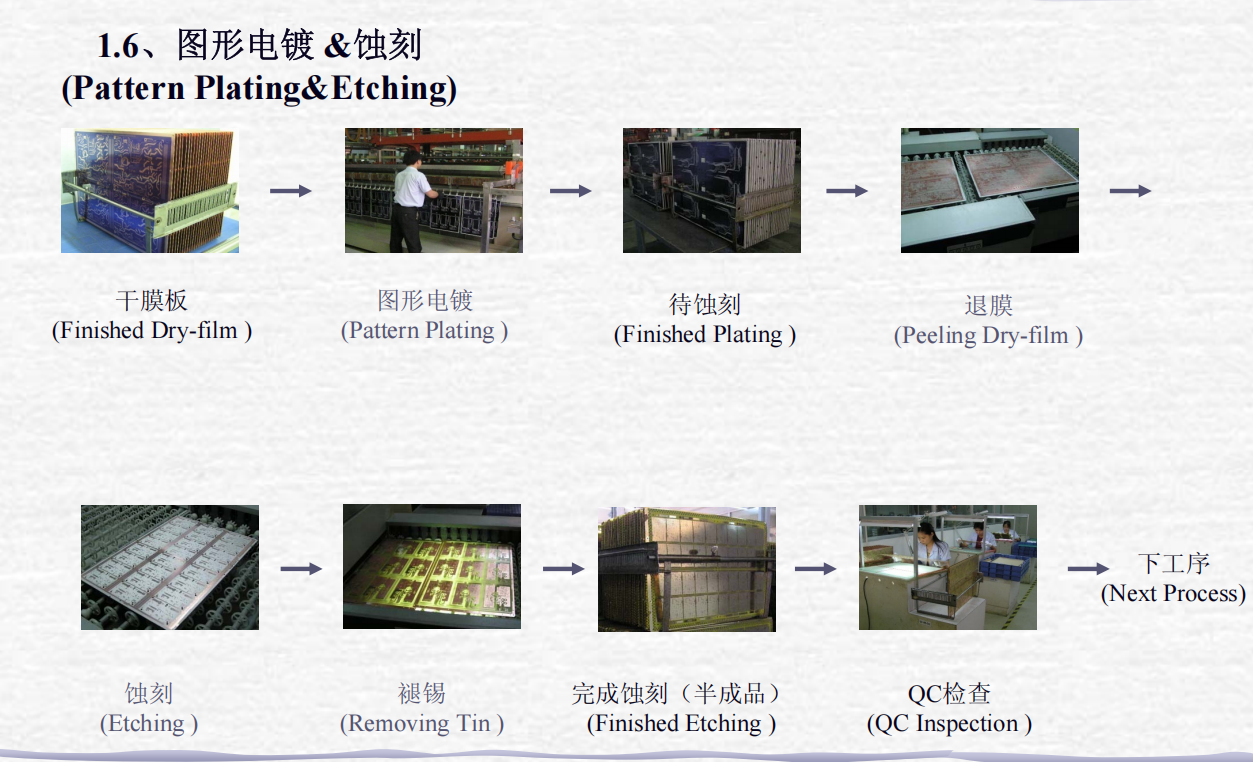

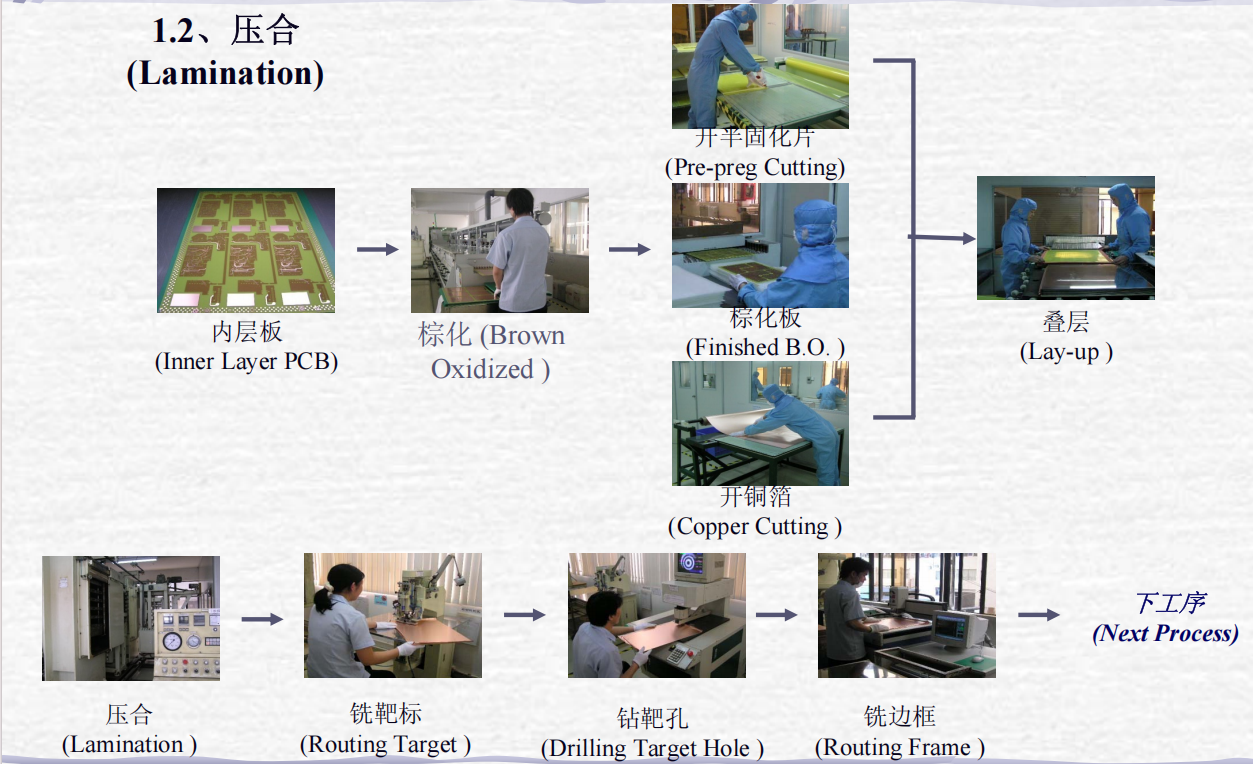

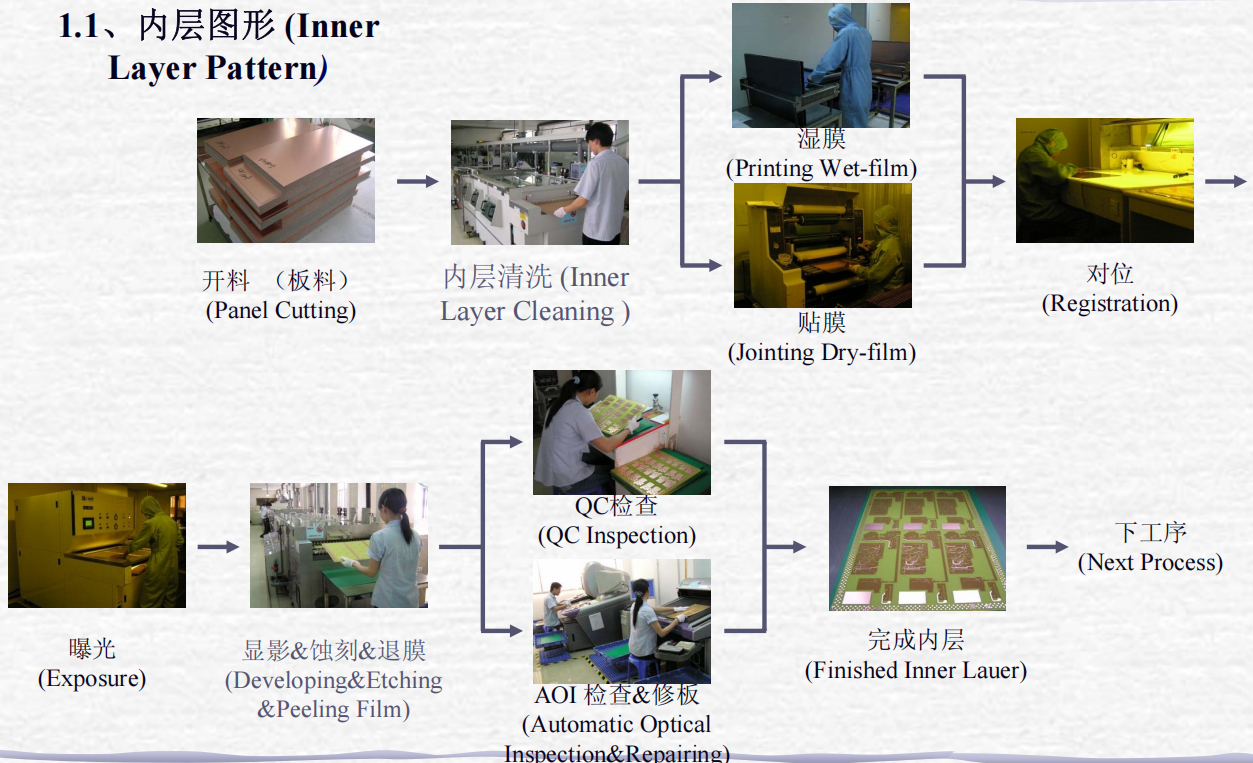

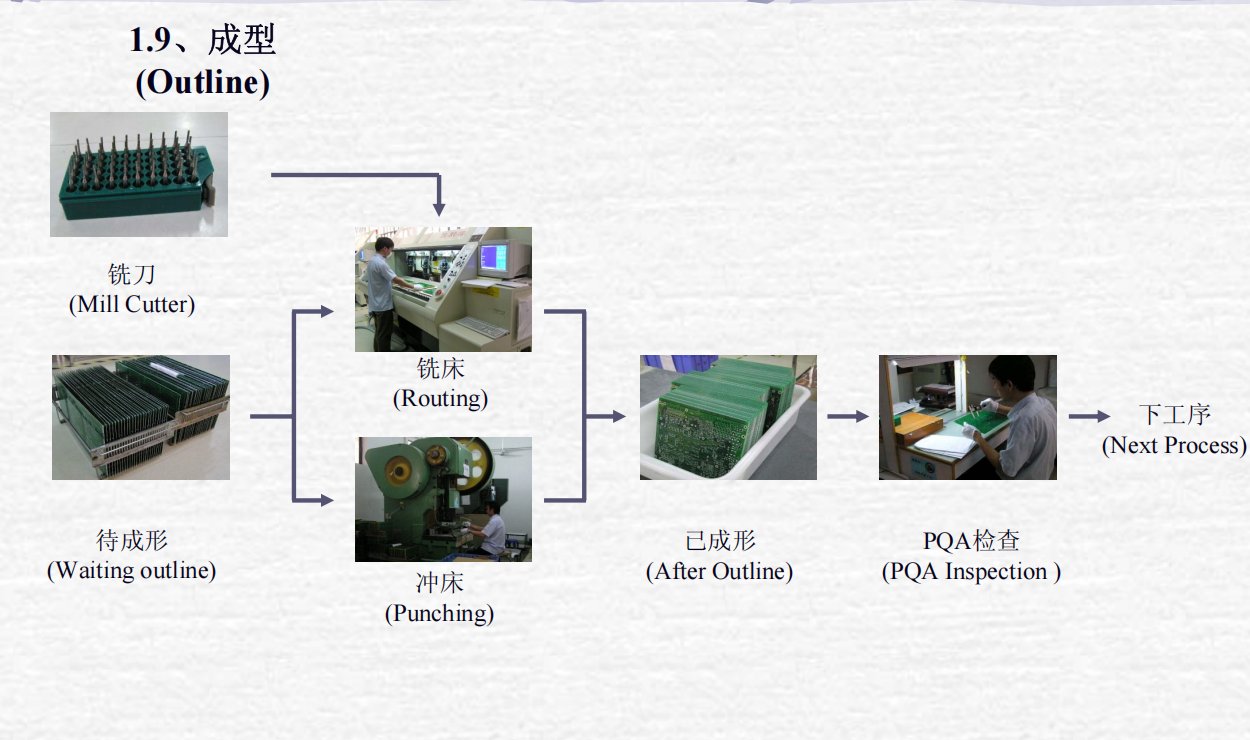

Manufacturing Process:
FAQ:
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:What format of Bom List you prefer?
A:We prefer in MS-Excel with Components Part No.,Manufacturer,Quantity,Value info, other format are also accepted.
Q:How can i know the processing about my PCBA order?
A:Each Customer will have a sale to contact with you. Eastwin working hours: AM 9:00-PM 6:00(Beijing Time) from Monday to Friday. we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:If all PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.
Q:What’s your minimum order quantity (MOQ)?
A:Our MOQ is 1 piece. We support prototype orders, small-batch trials, as well as medium and high-volume mass production to meet diverse R&D and production needs.
Q: What are the transportation methods used by your company?
A: Air transport, sea transport, rail transport, DHL, FEDEX, UPS, TNT and certain designated freight forwarders for customer's needs.
Q: What is your usual method of payment?
A: We usually use bank transfers and Paypal for receiving payments.
After-sales service:
At Multech, we believe a good PCB is just the beginning of the collaboration. What truly makes clients choose to walk with us for 20 years is our accountability when problems arise and our expertise with every technical consultation.
- Quality Assurance:100% tested. Free re-production for any defects.
- Technical Support: Lifetime access to our engineering team for consultation, including design file review, documentation guidance, design recommendations, and DFM (Design for Manufacturing) advice.
- Rapid Response: Initial feedback within 48 hours for any complaints.
- Long-Term Partnership:Professional account management services for high-volume orders.
