PCBA for Aerospace
Product name: Multilayer Heavy Copper ENIG Special PCB For Power Module
Board thickness: 10mm
Base material: FR4 TG170
Line width/space: 4/4mil
ENIG: 2U”
4oz finished
Quality Assurance: 100% AOI Test
Certificates: ISO.9001/CQC/ISO.TS16949/ROHS
Product Application：Consumer/home/network
- Multech
- China
- 15-20days
- 88000sqm/month
Product Description:
This 8-layer rigid-flex circuit board features superior quality materials, and its production method is quite sophisticated. It is capable of offering various features support to the most advanced class of electronic devices. We have employed resin filling technique on this circuit board. The method used guarantees a very good signal transmission and the board is well equipped to combat the corrosion effect. The PCB comprises TG170 material together with two pieces of PP. The material imparts the PCB with good heat resistance and mechanical stability, so it is the suitable one to be used in harsh environment conditions.
While the impedance PCB has the size of 340*249 MM and the smallest diameter of a hole is 0.2 MM, because of the high accuracy and high density of integration, it can serve a wide range of electronic devices.
So not only does our company produce PCBs but also we can do PCB assembly work for you. We have factory equipped with top-grade components like EMK212BJ106KG-T, 8930E-060-178MS-F, 2N7002, SG73P1JTTD1002F, and CRCW0603127KFKEAHP. Therefore, it is not a surprise that the stability and performance levels of the end product have always been maintained at the highest standard. The reason why Multech PCB is advantageous is that it can deliver quickly, therefore, be able to meet customers' urgent needs; besides that, the products with excellent quality are supported by a thorough quality assurance system, and alongside that, various quality inspection reports can be given to ensure the traceability of the products and their adherence to the respective standards.
Product Specifications:
BOM LIST
Multech PCB is a leading manufacturer of high-end printed circuit boards in China with nearly 30 years of industry experience, and it is founded by excellent PCB experts, and the head office of our company is located in Qianhai, Shenzhen, and our production factory is based in Huizhou. What's more, our workshop has covered an area of over 20,000 square meters and is equipped with multiple modern automated production lines. And its annual output exceeding 2 million square meters, so it is fully capable of efficiently handling prototype, medium and high volume orders.
We have a highly skilled R&D team composed of over 60 members at our company. We always put our technological innovation as our priority. Our expertise covers high-density multilayer boards, HDI, backplane PCBs, high-frequency boards, metal core PCBs, flexible and rigid-flex PCBs, and other special PCBs. 80% of our production is exported to Europe, the US, Japan, and the Asia-Pacific region, and they are greatly involved in high-tech industries such as telecommunication, industrial control, medical treatment, automotive, and aerospace.
Our company has been awarded authoritatively recognized international certifications, including ISO9001, ISO14001, UL, RoHS, and IATF16949. The production processes are all fully compliant, and the product quality stability and reliability have been ensured by 100% AOI inspection before shipment. It offers professional one-stop PCB+PCBA solutions for global customers and is able to win customers' trust both at home and abroad by high quality, cost-effectiveness, and prompt delivery.
Certificates:
ISO 13485
ISO 9001
IATF 16949
ISO 14001

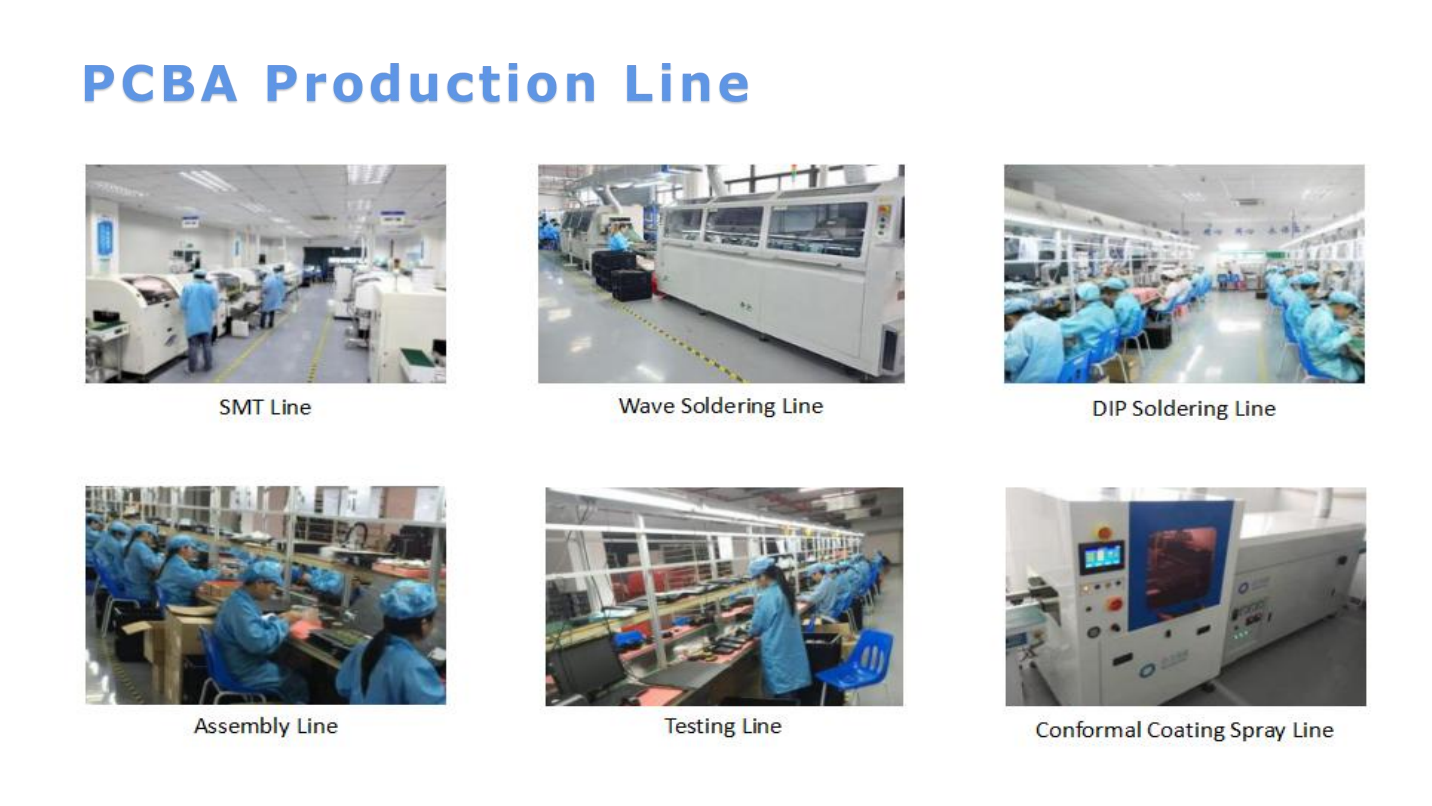

PCBA Production Line

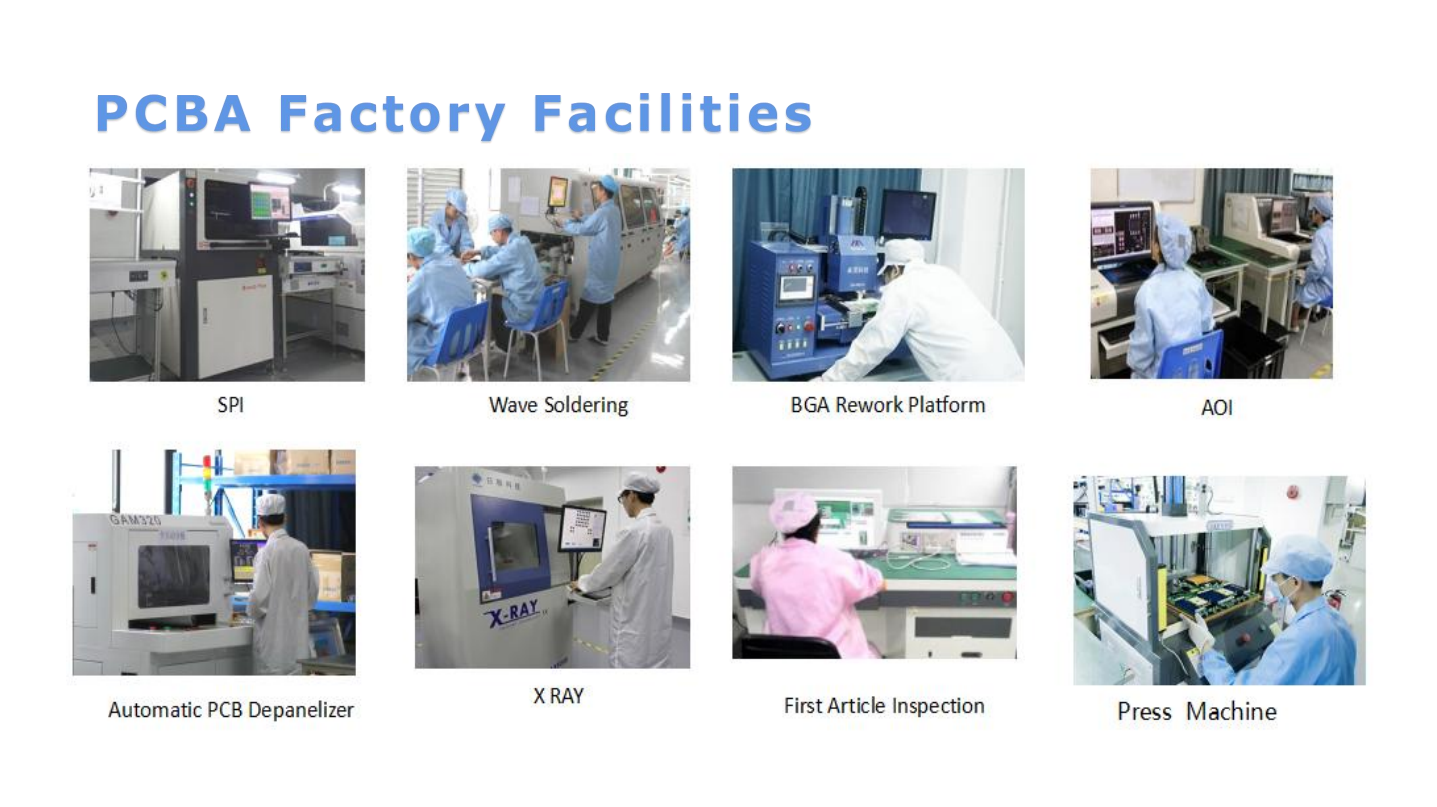

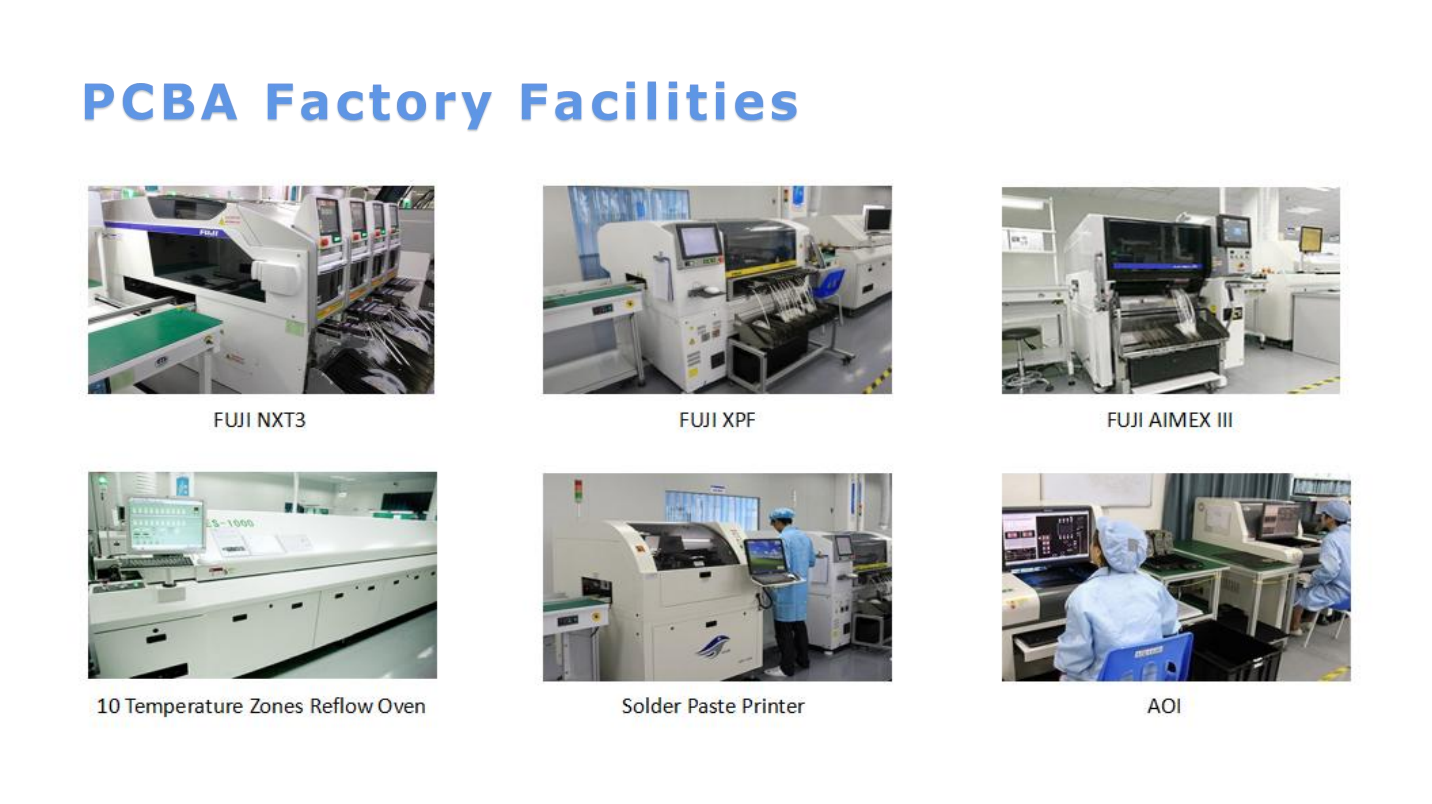

PCBA Factory Facilities
FAQ:
Q: What files do you use in bare pcb fabrication?
A: The files that we always require include Gerber RS-274X, 274D, Eagle, and the formats of AutoCAD such as DXF, DWG.
Q: What format of Bom List you prefer?
A: Our first choice is a BOM in MS-Excel with Component Part No., Manufacturer, Quantity, and Spec details. Other formats work as well.
Q: Can all PCBAs be tested before delivery if the function testing method is provided by us?
A: Absolutely. We run a thorough test of the functionality of the PCBA. A copy of the test report will be sent to you with the product.
Q: What's your minimum order quantity (MOQ)?
A: Our MOQ is 1 piece.
Q: What shipping methods does your company offer?
A: We Always using air transport, sea transport, rail transport, DHL, FEDEX, UPS, TNT . And also certain designated freight according to customer's needs.
Q: What is your usual method of receiving payment?
A: Most of the time, we use bank transfers and Paypal to receive payments.
After-sales service:
At Multech, we see a high-quality PCB as only the first step in a partnership. What really keeps our customers loyal to us for 20 years is our highly professional technical team who are committed to providing help in time when problems arise.
- Quality Assurance: We carry out 100% AOI tests. Moreover, we offer free re-production to any faults.
- Technical Support: Our engineering team is always available for your consulting needs, including design file reviewing, documentation guidance, design recommendations, and DFM (Design for Manufacturing) advice.
- Rapid Response: You may express your grievances and we will provide you with a quick response within 48 hours.
- Long-Term Partnership: We offer professional account management services for high-volume orders.
