PCBA for AI Chip / High Performance Computing (HPC) Sector
PCBA for AI Chip / High Performance Computing (HPC) Sector
Core Components- Main Control Chip,- Power Module: Interface Components
100% AOI Test
- PCB Material: FR-4 substrate with 94V-0 flame retardant rating, meeting IPC class 2 manufacturing standards
ISO.9001/CQC/ISO.TS16949/ROHS
Application：Consumer/home/network
- Multech
- China
- 15-20days
- 88000sqm/month
Product Description:
This is an AI control PCBA board. It is equivalent to the brain and is used to control AI devices. This circuit board is made of high-density green substrate and has a neat layout of the circuits. It is equipped with a main artificial intelligence chip, two high-speed data interfaces, and a 1000 microfarad capacitor to ensure stable power supply. The above configuration enables smooth data processing and immediate response to AI instructions.
This board is equipped with an independent AI algorithm computing module and a multi-channel signal acquisition unit, which can simultaneously collect and analyze data from multiple sensors. Additionally, it adopts a multi-interface connector design, enabling convenient connection of various AI peripherals such as vision sensors, environmental detectors, and actuators, thus meeting the usage requirements of different intelligent application scenarios.
Its design is robust and durable, capable of withstanding harsh environmental conditions such as temperature variations and electromagnetic interference. Therefore, it is widely applied in various fields such as artificial intelligence Internet, autonomous robots, and intelligent monitoring systems, providing a stable and powerful control foundation for the automated operation and intelligent decision-making driven by artificial intelligence.
Product Specifications:
| Category | Details |
| Product Overview | SABRE HPD AIC BOARD REV2 is an industrial-grade control board developed by Synoptics, specifically designed for high-performance industrial automation scenarios. |
| Core Components | - Control Core: High-performance industrial control chip with 24V standard input, built-in real-time OS kernel for low-latency task scheduling |
| - Power Module: Using a standard 24V input high-performance industrial control chip, with a built-in real-time operating system kernel, it can achieve low-latency task scheduling. | |
- Communication Interfaces: 2 serial UART interface, 1 high-speed data interface which can support Modbus, Profinet and EtherCAT protocols | |
| - Auxiliary Components: include RESET button, status indicator lights, and ESD protection circuit | |
| Key Specifications | - Power Supply: 24V DC input (working range: 18V~30V) |
- Communication: UART max 115.2Kbps, compatible with Modbus RTU/ASCII, Profinet IO, EtherCAT The maximum UART is 115.2 kilobits per second. It also supports Modbus RTU/ASCII, Profinet IO, and EtherCAT protocols. | |
- Expansion: It can supports up to 8 peripheral devices can be externally connected via the pin header interface. | |
| - Environment requirement: operating temperature: -40℃~85℃, and its operating humidity: 5%~95% (non-condensing) | |
| Application Scenarios | - Smart manufacturing equipment control |
| - Industrial robotics auxiliary control | |
| - Industrial IoT data acquisition & transmission | |
| - Specialized automation systems (warehousing, inspection) |
Multech PCB Core Advantages:
1. It adopts a sturdy and durable design, which can operate stably under harsh conditions such as temperature variations and electromagnetic interference. Therefore, this equipment is widely used in AI Internet, autonomous robots, and intelligent monitoring systems, providing a stable and efficient control foundation for AI-driven automated operations and intelligent decision-making.
2. Strong production capacity: Our head office in Qianhai, Shenzhen, and it has a factory base in Huizhou. Our workshop covers an area of over 20,000 square metres and is equipped with modern automated production lines. It has an annual output of more than 2 million square metres and is capable of efficiently handling prototype, medium and large-volume orders.
3. R&D and product advantages: The company has a professional R&D team of over 60 members who focus on technological innovation and specialise in various types of specialised PCBs, such as high-density multilayer boards, HDI and backplane PCBs. Its products are used in high-end fields.
5. Guaranteed Quality: It has obtained authoritative international certifications, such as ISO 9001, ISO 14001, and UL. Its production processes are very compliant, and it conducts 100% AOI inspections before shipment to ensure stability and reliability of the product quality.
6. Service and Cooperation Advantages: Multech PCB provides professional one-stop PCB+PCBA solutions services, which can gain the trust of customers worldwide and set up long-term partnerships through high quality, cost-effectiveness, and timely delivery.
Certificates:
ISO 13485
ISO 9001
IATF 16949
ISO 14001

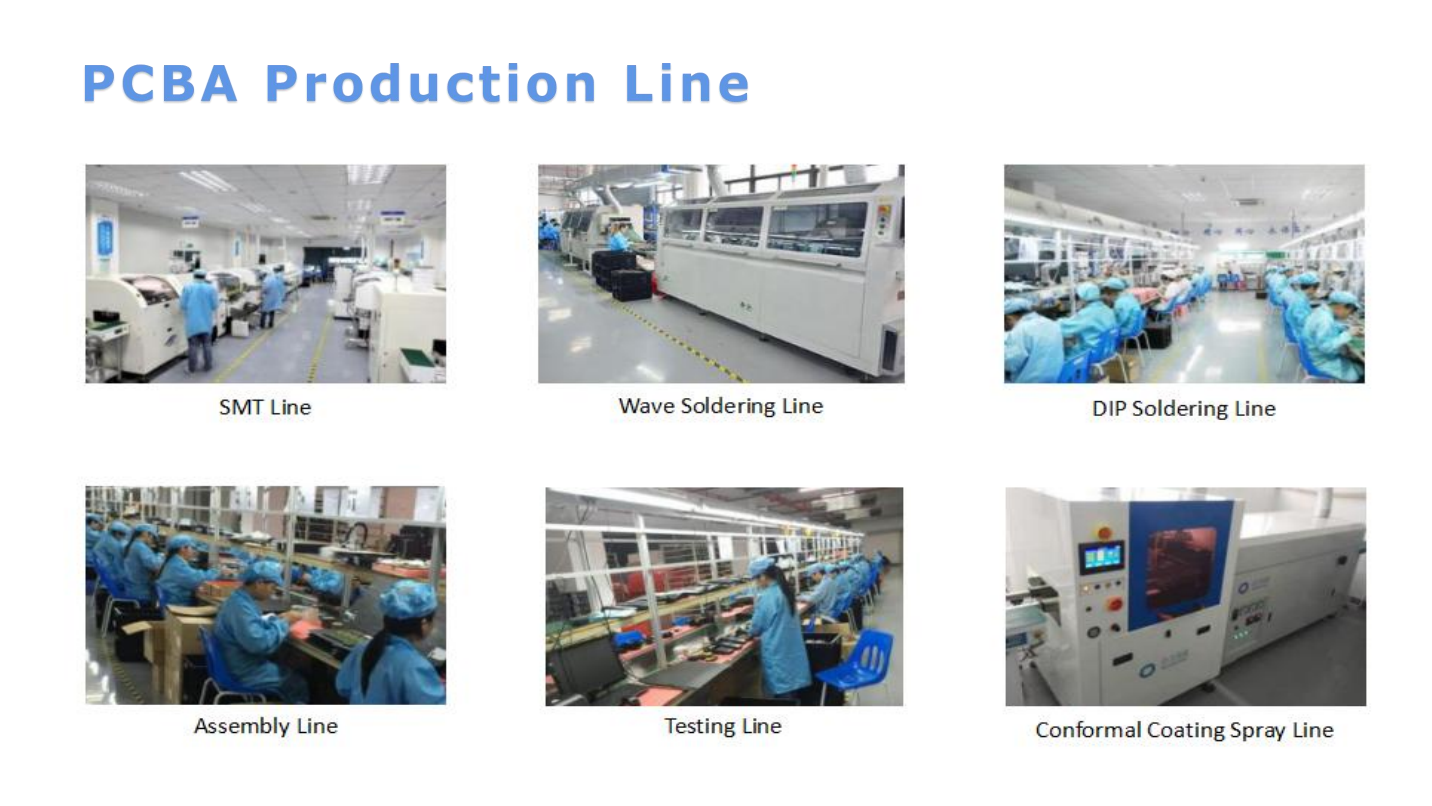

PCBA Production Line:

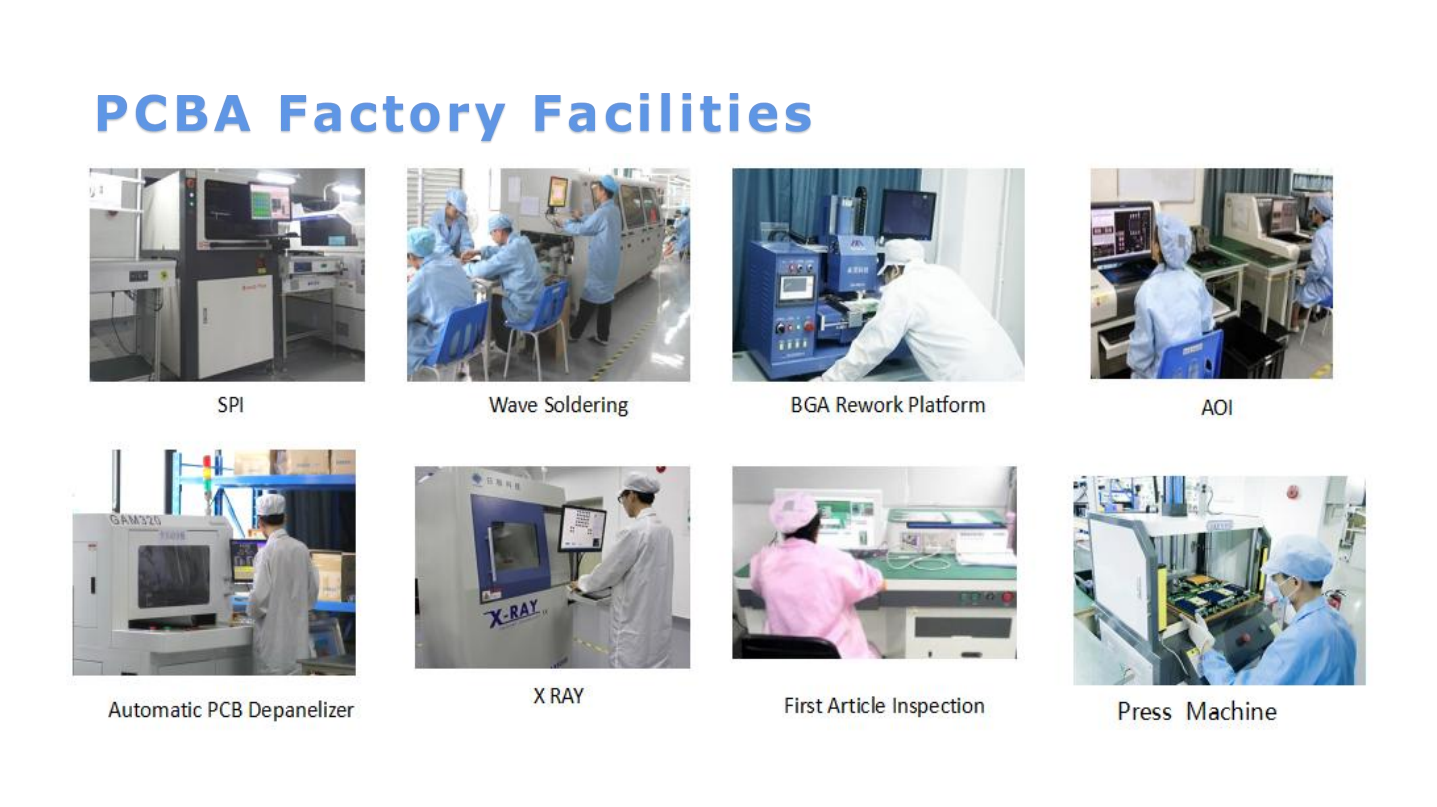

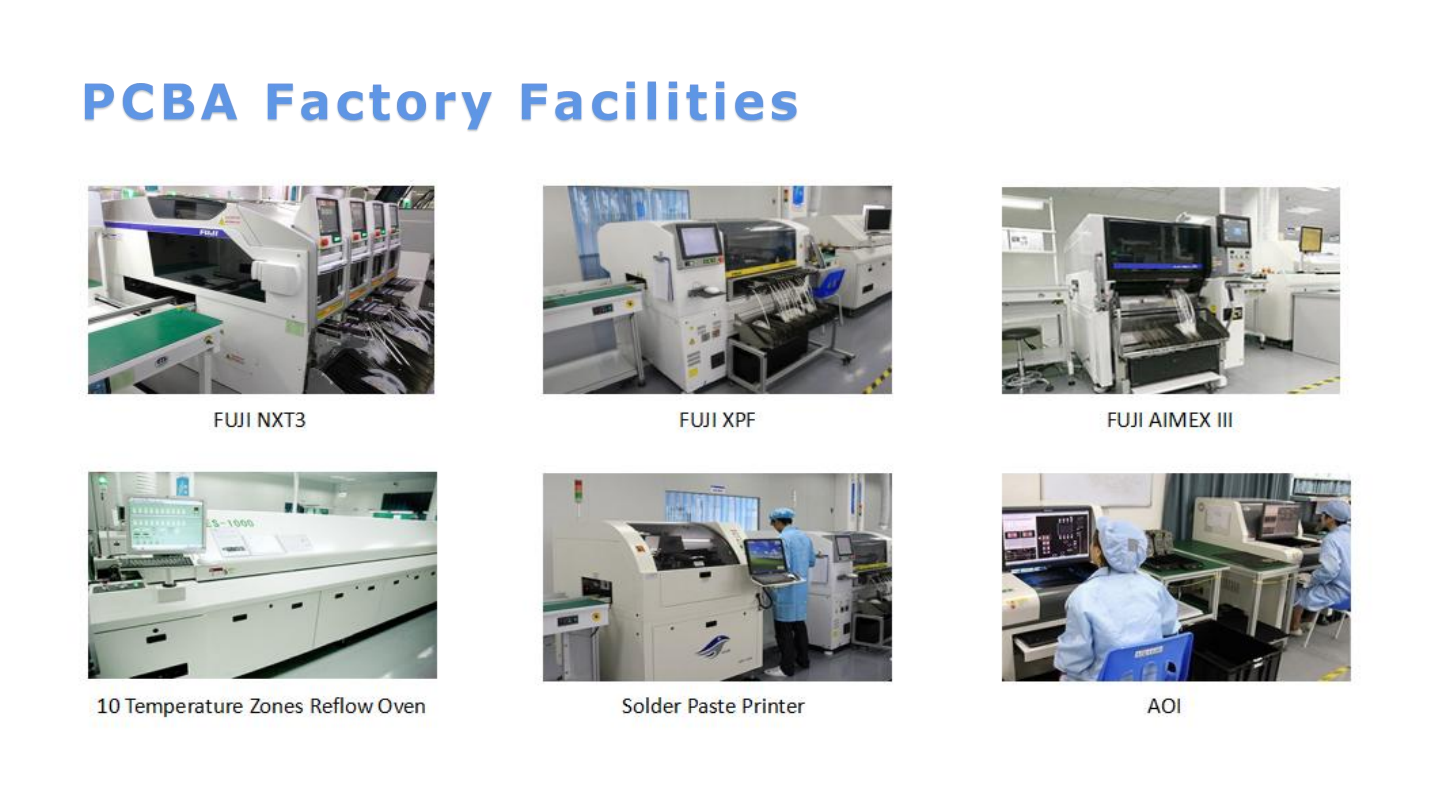

PCBA Factory Facilities:
FAQ:
1. Q: What is the core process of PCBA production?
A: The core process mainly includes 4 steps: PCB bare board inspection → DIP insertion (for through-hole components) → soldering, cleaning, and testing (AOI, X-Ray, etc.)→ PCB assembly (mounting components on the PCB surface/SMT), and finally completing the finished PCBA.
2. Q: What is the difference between SMT assembly and DIP insertion in PCBA production?
A: SMT assembly is for small, surface-mounted components (such as resistors, capacitors, chips), which are accurately mounted by a pick-and-place machine with high efficiency and small size; DIP insertion is for through-hole components (such as pin-type capacitors, connectors), which need to be inserted into PCB through-holes manually or by an insertion machine, and then fixed by wave soldering.
3. Q: What are the main testing methods for finished PCBA products?
A: Common testing methods include 3 types: AOI optical inspection (detecting component misalignment, cold solder joints, and missing solder joints), X-Ray inspection (detecting the internal soldering condition of packaged components such as BGA), and functional testing (detecting whether the overall electrical performance of PCBA meets the requirements).
4. Q: What are the main factors affecting PCBA soldering quality?
A: The core influencing factors include 4 points: soldering temperature (too high is easy to burn components, too low is easy to cause cold solder joints), soldering time, solder paste quality, and PCB pad cleanliness. In addition, oxidation of component pins will also affect the soldering effect.
5. Q: How long is the general lead time for PCBA production?
A: The lead time depends on the order quantity and process complexity: prototype orders (1-10pcs) usually take 3-5 working days; small-batch orders (100-1000pcs) take 5-7 working days; large-batch orders (more than 1000pcs) take 7-15 working days. The lead time for special processes (such as high frequency, high density) will be appropriately extended.
6. Q:What’s your minimum order quantity (MOQ)?
A:Our MOQ is 1 piece. We can support prototype orders, small-scale trials production, as well as medium to large-volume mass production to meet customers' diverse R&D and production needs.
7.Q: What are the transportation methods used by your company?
A: Air transport, sea transport, rail transport, DHL, FEDEX, UPS, TNT and certain designated freight forwarders for customer's needs.
8.Q: What is your usual method of payment?
A: We usually use bank transfers and Paypal for receiving payments.
Multech After-sales Service:
At Multech, we adher to the belief that a high-quality PCB just is a starting point of our cooperation. What really enables us to maintain long-term partnerships with customers for 20 years is our sense of responsibility, we handle all kinds of technical consultations with professional capabilities when the issues occur.
- Quality Assurance: All products must undergo 100% AOI test. We offer free re-manufacturing for the products found to have some defects.
- Technical Support: Customers can have lifelong access to our engineering team for professional consulting services. The services include design documents, guidance on documents, design suggestions, and DFM-related consultations for manufacturing.
- Rapid Response: We provide quick feedback within 48 hours for any complaints or inquiries of the customers.
- Long-Term Partnership: For high-volume orders, we offer professional account management services to ensure smooth and efficient cooperation.
