14L HDI Resin Plugged Impedance Control PCB
Product name: 14L HDI Resin Plugged Impedance Control PCB
Finished board thickness: 1.5mm
Base material: FR4+M6
TG value: TG180
Outer layer copper thickness: 1OZ
Inner layer copper thickness: 1OZ
Surface treatment: ENIG（2U”）
Solder mask color: green
Silkscreen color: white
Acceptance standard: IPC class 2
100% AOI Test
ISO.9001/CQC/ISO.TS16949/ROHS
Application：Consumer/home/network
- Multech
- China
- 5-7days
- 88000sqm/month
Product Description:
14L HDI Resin Plugged Impedance Control PCB is a high-performance printed circuit board, featuring 14 layers, resin plugged technology and precise impedance control. Made of FR4+M6 base material with TG180, it ensures excellent thermal stability and reliability. With 1OZ copper thickness for both outer and inner layers, ENIG (2u”) surface treatment, green solder mask and white silkscreen, it meets IPC Class 2 standard and undergoes 100% AOI test. Certified by ISO 9001, CQC, IATF 16949 and ROHS, it is widely applied in consumer electronics, home appliances and network equipment.
Product Specifications: 14L HDI Resin Plugged Impedance Control PCB
| Item | Specification |
|---|---|
| Product Name | 14L HDI Resin Plugged Impedance Control PCB |
| Finished Board Thickness | 1.5mm |
| Base Material | FR4+M6 |
| TG Value | TG180 |
| Outer Layer Copper Thickness | 1OZ |
| Inner Layer Copper Thickness | 1OZ |
| Surface Treatment | ENIG (2u”) |
| Solder Mask Color | Green |
| Silkscreen Color | White |
| Acceptance Standard | IPC Class 2 |
| Testing | 100% AOI Test |
| Certification | ISO 9001 / CQC / IATF 16949 / ROHS |
| Application | Consumer Electronics / Home Appliance / Network Equipment |
Product Advantages:
High Precision Impedance Control: Ensures stable signal transmission, effectively reducing signal interference and improving the overall performance of electronic devices.
14-Layer HDI Structure & Resin Plugged Technology: Optimizes board space utilization, supports high-density component layout, and enhances the reliability of interlayer connections.
Superior Material Performance: Adopts FR4+M6 base material with TG180, featuring excellent thermal stability, heat resistance and mechanical strength, suitable for long-term stable operation.
High-Quality Copper & Surface Treatment: 1OZ copper thickness for both inner and outer layers ensures good conductivity; ENIG (2u”) surface treatment provides excellent corrosion resistance and solderability.
Strict Quality Control: Complies with IPC Class 2 standard, undergoes 100% AOI test, and is certified by ISO 9001, CQC, IATF 16949 and ROHS, guaranteeing stable and reliable product quality.
Wide Application Range: Perfectly suitable for consumer electronics, home appliances and network equipment, meeting diverse application needs of different industries.
Company Profile:
Founded in 1997, Multech PCB is a leading manufacturer of high-end printed circuit boards in China with nearly 30 years of industry experience. Founded by senior PCB experts, the company's headquartered is located in Qianhai, Shenzhen, with its production factory is based in Huizhou. It covers a workshop area of over 20,000 square meters and is equipped with multiple modern automated production lines, with an annual output exceeding 2 million square meters, capable of efficiently handling prototype, medium and high volume orders.
Boasting a professional R&D team of more than 60 members, the company focuses on technological innovation, specializing in high-density multilayer boards, HDI, backplane PCBs, high-frequency boards, metal core PCBs, flexible and rigid-flex PCBs and other special PCBs. 80% of its products are exported to Europe, the United States, Japan and the Asia-Pacific region, widely used in high-tech industries such as telecommunications, industrial control, medical treatment, automotive and aerospace.
The company has passed international authoritative certifications including ISO9001, ISO14001, UL, RoHS and IATF16949, with fully compliant production processes and 100% full inspection before shipment to ensure stable and reliable quality. It has long provided one-stop PCB+PCBA solutions for global well-known enterprises, winning the trust of customers at home and abroad with high quality, cost-effectiveness and prompt delivery.
ISO 13485
ISO 9001
IATF 16949
ISO 14001

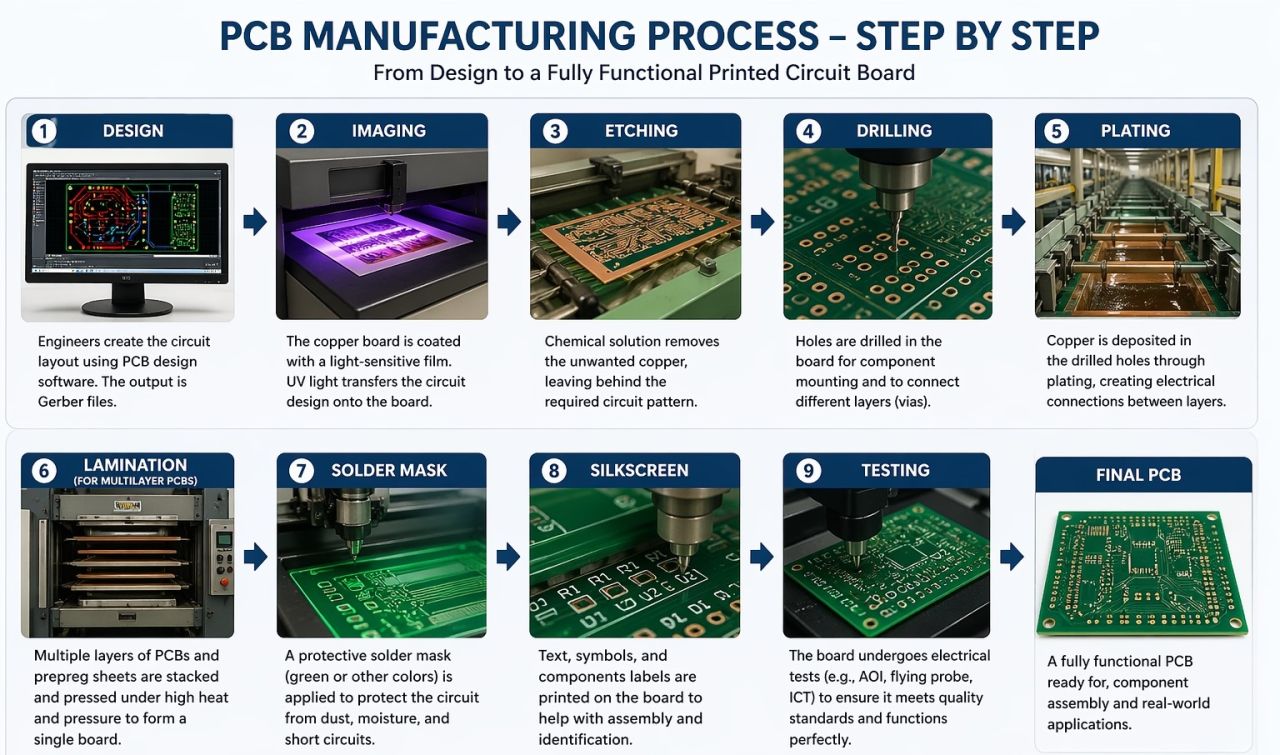

Manufacturing Process:
