2L Rogers PCB
Product name: 2L Rogers PCB
Finished board thickness: 0.38mm
Base material: RO3003
Outer layer copper thickness: 1OZ
Surface treatment: ENIG 2U”
Solder mask color: green
Silkscreen color: white
Acceptance standard: IPC class 2
Quality assurance: 100% AOI Test
Certificates: ISO.9001/CQC/ISO.TATF16949/ROHS
Application：Consumer/home/network
- Multech
- China
- 5-7days
- 88000sqm/month
Product Description:
Our 2-layer Rogers PCB is a high-performance circuit board built with premium RO3003 substrate. This ceramic-filled PTFE composite material features ultra-stable electrical properties and low dielectric loss, making it ideal for high-precision signal transmission. With a 0.38mm finished board thickness and 1oz outer layer copper, the PCB maintains reliable signal output and solid mechanical stability during continuous operation.
It adopts 2u'' ENIG surface finish to stop copper oxidation and sustain long-term solderability, fully meeting RoHS environmental standards. Equipped with green solder mask and white silkscreen for clear component marking, the board complies with IPC Class 3 high-grade industry specifications. Every board undergoes 100% AOI full inspection to eliminate potential defects and guarantee consistent quality.
Product Specifications: 2L Rogers PCB
| Item | Specification |
|---|---|
| Product Name | 2L Rogers PCB |
| Finished Board Thickness | 0.38mm |
| Base Material | RO3003 |
| Outer Layer Copper Thickness | 1OZ |
| Surface Treatment | ENIG 2u'' |
| Solder Mask Color | Green |
| Silkscreen Color | White |
| Acceptance Standard | IPC Class 3 |
| Quality Test | 100% AOI Test |
| Certificates | ISO 9001 / CQC / IATF16949 / ROHS |
| Application Fields | Consumer Electronics / Household Products / Network Equipment |
Product Advantages:
Our 2-layer Rogers PCB adopts high-quality RO3003 substrate, delivering stable electrical performance and ultra-low dielectric loss for consistent, reliable signal transmission. The 0.38mm finished board thickness paired with 1oz outer layer copper provides solid mechanical stability and excellent electrical conductivity for long-term operation.
We apply 2U'' ENIG surface treatment to effectively resist copper oxidation and maintain durable solderability throughout the product’s service life. All boards follow IPC Class 3 high industry standards and pass 100% AOI full inspection, ensuring zero major defects and stable overall quality.
The product holds ISO 9001, CQC, IATF 16949 and RoHS certifications, meeting global quality and environmental compliance requirements. With green solder mask and white silkscreen for clear circuit identification, it performs steadily in consumer electronics, household appliances and network equipment, offering reliable and efficient operation for diverse commercial applications.
Company Profile:
Founded in 1997, Multech PCB is a leading manufacturer of high-end printed circuit boards in China with nearly 30 years of industry experience. Founded by senior PCB experts, and the head office of our company locates in Qianhai, Shenzhen, and its production factory is based in Huizhou. What's more, the workshop has covered an area of over 20,000 square meters and is equipped with multiple modern automated production lines. And its annual output exceeding 2 million square meters, so it is fully capable of efficiently handling prototype, medium and high volume orders.
Boasting a professional R&D team of more than 60 members, the company focuses on technological innovation, specializing in high-density multilayer boards, HDI, backplane PCBs, high-frequency boards, metal core PCBs, flexible and rigid-flex PCBs and other special PCBs. 80% of its products are exported to Europe, the United States, Japan and the Asia-Pacific region, widely used in high-tech industries such as telecommunications, industrial control, medical treatment, automotive and aerospace.
The company has passed international authoritative certifications including ISO9001, ISO14001, UL, RoHS and IATF16949, with fully compliant production processes and 100% full inspection before shipment to ensure stable and reliable quality. It has long provided one-stop PCB+PCBA solutions for global well-known enterprises, winning the trust of customers at home and abroad with high quality, cost-effectiveness and prompt delivery.
Certificates:
ISO 13485
ISO 9001
IATF 16949
ISO 14001

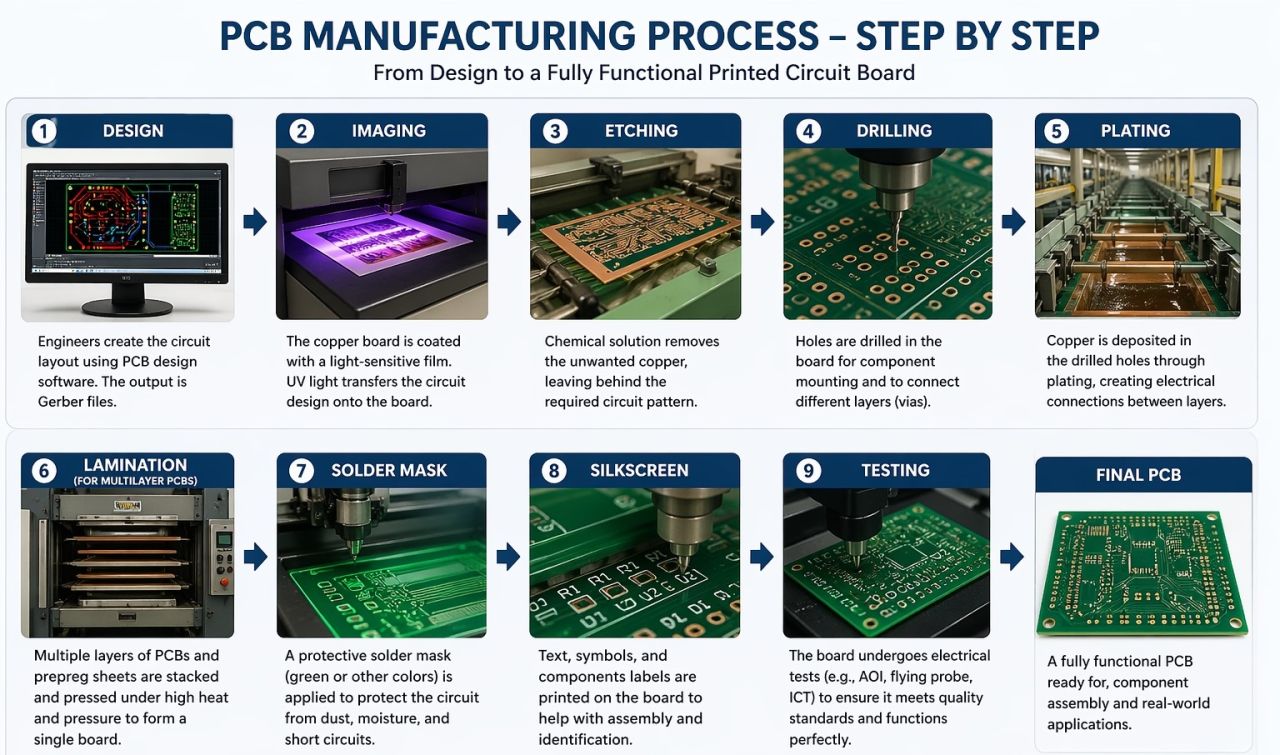

Manufacturing Process:
Quality Control:
We have always regarded quality as the foundation of our development. Endowed with strong technical strength, we have been awarded the title of High-Tech Enterprise and passed multiple authoritative certifications, including ISO9001, ISO14001, IATF16949 and ISO13485, which lay a solid foundation for product quality.
We strictly abide by various certification standards and establish a full-process, refined quality control system. From R&D and production to delivery, each link implements strict inspection and audit to ensure stable quality and reliable performance of each batch of products. We effectively provide customers with trustworthy quality assurance and adhere to our core philosophy: "Establishing the Enterprise with Quality, Win-Win with Integrity".
FAQ:
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:What format of Bom List you prefer?
A:We prefer in MS-Excel with Components Part No.,Manufacturer,Quantity,Value info, other format are also accepted.
Q:If all PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.
Q:What’s your minimum order quantity (MOQ)?
A:Our MOQ is 1 piece. We support prototype orders, small-batch trials, as well as medium and high-volume mass production to meet diverse R&D and production needs.
Q: What are the transportation methods used by your company?
A: Air transport, sea transport, rail transport, DHL, FEDEX, UPS, TNT and certain designated freight forwarders for customer's needs.
Q: What is your usual method of payment?
A: We usually use bank transfers and Paypal for receiving payments.
Shipping Notes:
Sample spares for quality testing, micro-section test is availble;
Email notification with tracking number once shipment was arranged;
For any issues during the shipment to customers' end advising and follow-up;
