4L Hybrid lamination FR4+RO3003
4Layer Hybrid lamination S1000-2M+RO3003
1.6mm thickness
POFV technology
ENIG（2U”）
1oz finished
100% AOI Test
ISO.9001/CQC/ISO.TS16949/ROHS
Application：communication/network
- Multech
- China
- 5-7days
- 88000sqm/month
Product Description:
Hybrid construction of FR4 and Rogers materials, POFV technology
Product Specifications:Hi-Tg PCB Product Parameters
Parameter Category | Specification |
|---|---|
Board Thickness | 1.6mm |
PCB Type | Hybrid lamination S1000-2M+RO3003 |
Line Width/Space | 4/4mil |
Surface Finish | ENIG (2U”) |
Finished Copper Thickness | 1oz |
Testing Standard | 100% AOI Test |
Certifications | ISO 9001 / CQC / ISO TS16949 / ROHS |
Applications | communication/network |
Product Advantages:
A major advantage of the FR4 and Rogers hybrid PCBs is that at the same time as they maintain the high frequency signal performance they also can quite dramatically reduce overall production costs. Besides this, hybrids also bring mechanical strength and design flexibility to the table. That is why one can consider them as the best fit for cost-sensitive large scale manufacturing
Company Profile:
Founded in 1997, Multech PCB is a leading Chinese manufacturer of high-end PCBs with nearly 30 years of experience. Headquartered in Shenzhen’s Qianhai and its factory is based in Huizhou, the company operates a 20,000+ m² facility with automated lines and an annual output exceeding 2 million m², efficiently handling prototype, medium, and high-volume orders.
Its 60+ member R&D team specializes in HDI, backplane, high-frequency, metal core, flexible, rigid-flex, and other advanced PCBs. 80% of products are exported to Europe, the US, Japan, and Asia-Pacific, serving telecom, industrial control, medical, automotive, and aerospace sectors.
Certified to ISO9001, ISO14001, UL, RoHS, and IATF16949, Multech ensures fully compliant processes and 100% pre-shipment inspection. The company offers one-stop PCB+PCBA solutions to global clients, trusted for quality, cost-effectiveness, and on-time delivery.
ISO 13485
ISO 9001
IATF 16949
ISO 14001

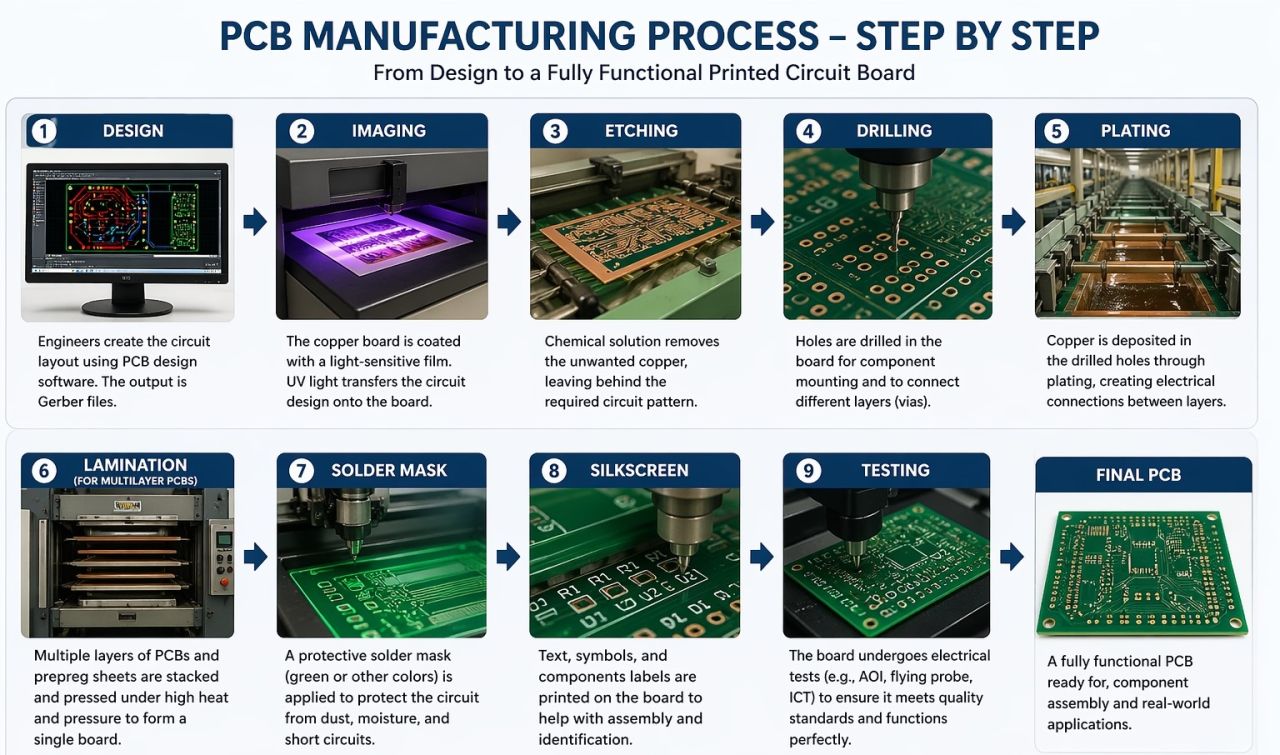

Manufacturing Process:
FAQ:
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:What format of Bom List you prefer?
A:We prefer in MS-Excel with Components Part No.,Manufacturer,Quantity,Value info, other format are also accepted.
Q:How can i know the processing about my PCBA order?
A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday. we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:What’s your minimum order quantity (MOQ)?
A:Our MOQ is 1 piece. We support prototype orders, small-batch trials, as well as medium and high-volume mass production to meet diverse R&D and production needs.
Q: What are the transportation methods used by your company?
A: Air transport, sea transport, rail transport, DHL, FEDEX, UPS, TNT and certain designated freight forwarders for customer's needs.
Q: What is your usual method of payment?
A: We usually use bank transfers and Paypal for receiving payments.
After-sales service:
At Multech, a good PCB is just the start of the collaboration in our opinion. What really changes people to choose us and stay with us for 20 years is our responsibility when problems come up and our deep technical knowledge at every consulting session with the client.
- Quality Assurance: All PCBs tested 100%. Free reproduction for any defects.
- Technical Support: You will always have access to our engineering team for consultation (including reviewing your design files, directing you on documentation, giving design recommendations, and advising on DFM (Design for Manufacturing)).
- Rapid Response: Give initial feedback within 48 hours for any complaints.
- Long-Term Partnership:Professional account management services for high-volume orders.
